Single-channel operational amplifier featuring an 85MHz -3dB bandwidth and 27MHz gain bandwidth product. This surface-mount IC operates from a 2.25V to 5.5V dual supply or 4.5V to 11V single supply, with a typical operating supply current of 6mA. It offers a high slew rate of 500V/µs and 28ns settling time, with output current capabilities up to 95mA per channel. Specifications include a 70dB common mode rejection ratio and 65dB power supply rejection ratio, with an input offset voltage of 5mV and input bias current of 15µA. This RoHS compliant component is supplied in tape and reel packaging.
Current5.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4390EXT+T technical specifications.
General
| -3db Bandwidth | 85MHz |
| Bandwidth | 85MHz |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 27MHz |
| Input Bias Current | 15uA |
| Input Offset Voltage (Vos) | 5mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 5.5V |
| Min Dual Supply Voltage | 2.25V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 245mW |
| Max Supply Voltage | 11V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 6mA |
| Operating Supply Voltage | 5.5V |
| Output Current | 50mA |
| Output Current per Channel | 95mA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 65dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Settling Time | 28ns |
| Slew Rate | 500V/µs |
| Supply Current | 5.5mA |
| Voltage Gain | 70dB |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX4390EXT+T Datasheet
Download the complete datasheet for Maxim MAX4390EXT+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

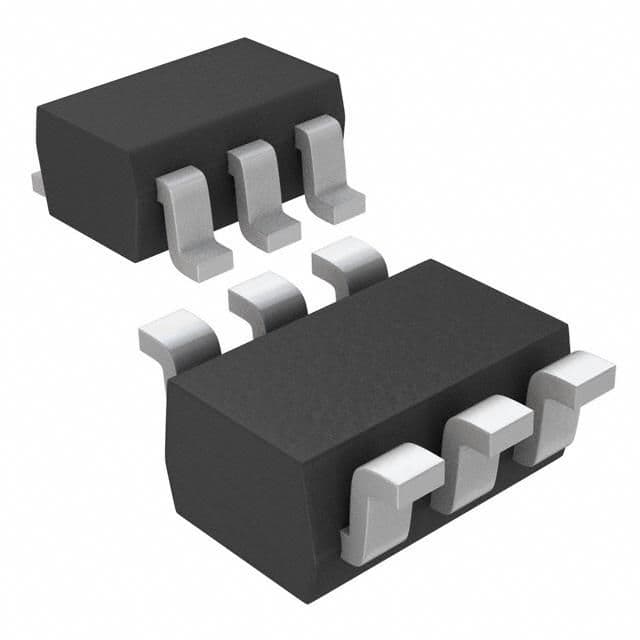

Product Images
