Dual-channel voltage-feedback operational amplifier featuring a 200MHz -3dB bandwidth and 95V/µs slew rate. This surface-mount integrated circuit, housed in a SOT-23-8 package, operates from a 2.7V to 5.25V supply range with a typical 620µA quiescent current. It offers 60dB common mode rejection and power supply rejection ratios, with an input offset voltage of 400µV and 800nA input bias current. Maximum output current per channel is 22mA, and the device operates across a -40°C to +85°C temperature range.
PackageSOT-23-8
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4453EZA+T technical specifications.
General
-3db Bandwidth
200MHz
Package/Case
SOT-23-8
Common Mode Rejection Ratio
60dB
Input Bias Current
800nA
Input Offset Voltage (Vos)
400uV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
741mW
Max Supply Voltage
5.25V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
2
Operating Supply Current
620uA
Operating Supply Voltage
5V
Output Current per Channel
22mA
Package Quantity
2500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
60dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
95V/µs
Technology
BIPOLAR
Voltage Gain
80dB
Compliance
RoHS
Compliant
Datasheet
Maxim MAX4453EZA+T Datasheet
Download the complete datasheet for Maxim MAX4453EZA+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

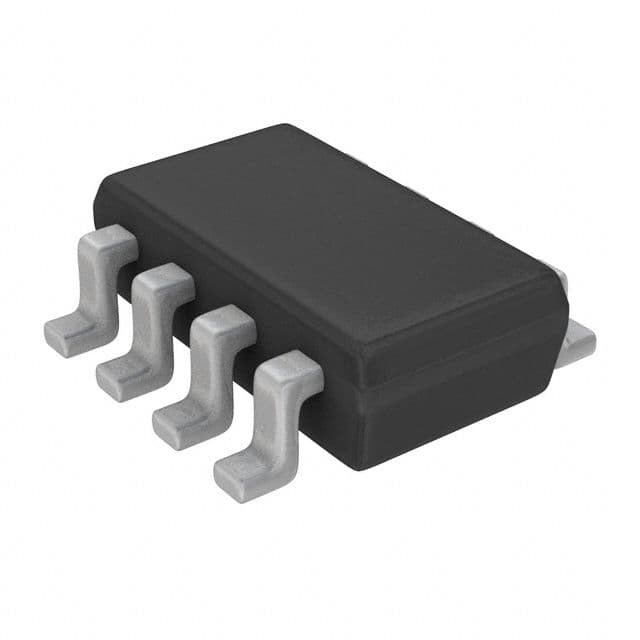

Product Images
