Mono Class AB audio preamplifier IC in SOT-23-8 package. Features 600kHz gain bandwidth product, 80dB common mode rejection ratio, and 112dB power supply rejection ratio. Operates from a single 2.4V to 5.5V supply with a typical 5V operating voltage. Offers 100nA input bias current and 5V input offset voltage. Designed for surface mount applications with a compact 1.1mm height.
PackageSOT-23-8
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4468EKA+T technical specifications.
General
Package/Case
SOT-23-8
Common Mode Rejection Ratio
80dB
Gain Bandwidth Product
600kHz
Height
1.1mm
Input Bias Current
100nA
Input Offset Voltage (Vos)
5V
Length
2.9mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
421mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.4V
Mount
Surface Mount
Number of Channels
1
Operating Supply Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
112dB
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Supply Type
Single
Weight
0.001411oz
Width
1.63mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX4468EKA+T Datasheet
Download the complete datasheet for Maxim MAX4468EKA+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

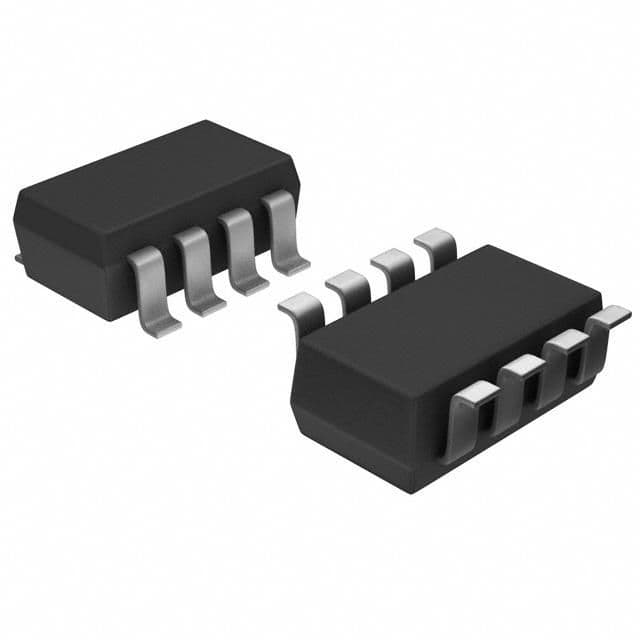

Product Images
