CMOS SPDT analog switch featuring 1 channel and 1 circuit. Offers a -3dB bandwidth of 200MHz with an on-state resistance of 60 Ohms. Operates from a single supply voltage between 2V and 5.5V, with a typical supply current of 1uA. Packaged in a SOT-23-6 surface mount configuration, suitable for operation within a temperature range of -40°C to 85°C.
PackageSOT-23-6
Current1uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4599EUT-T technical specifications.
General
| -3db Bandwidth | 200MHz |
| Package/Case | SOT-23-6 |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 245mW |
| Max Supply Current | 1uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Switches | 1 |
| On-State Resistance | 60R |
| Operating Supply Current | 1uA |
| Operating Supply Voltage | 5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Supply Current | 1uA |
| Supply Type | Single |
| Throw Configuration | SPDT |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Maxim MAX4599EUT-T Datasheet
Download the complete datasheet for Maxim MAX4599EUT-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

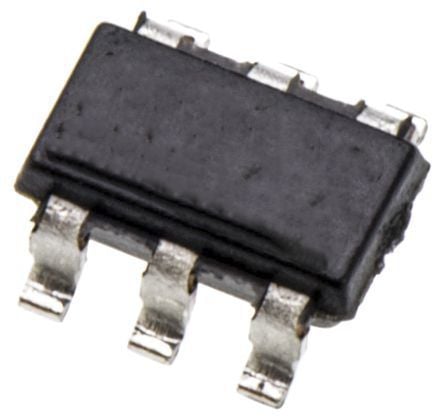

Product Images
