The MAX4614EUD is a 4-bit SPST single supply surface mount multiplexer from Maxim. It operates over a temperature range of -40°C to 85°C and has a maximum supply voltage of 5.5V. The device is available in a TSSOP-14 package and is not RoHS compliant due to containing lead. The MAX4614EUD has an on-state resistance of 10R and an operating supply current of 1uA.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4614EUD technical specifications.
General
| Package/Case | TSSOP |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| On-State Resistance | 10R |
| Operating Supply Current | 1uA |
| Package Quantity | 96 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Supply Type | Single |
| Throw Configuration | SPST |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Maxim MAX4614EUD Datasheet
Download the complete datasheet for Maxim MAX4614EUD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

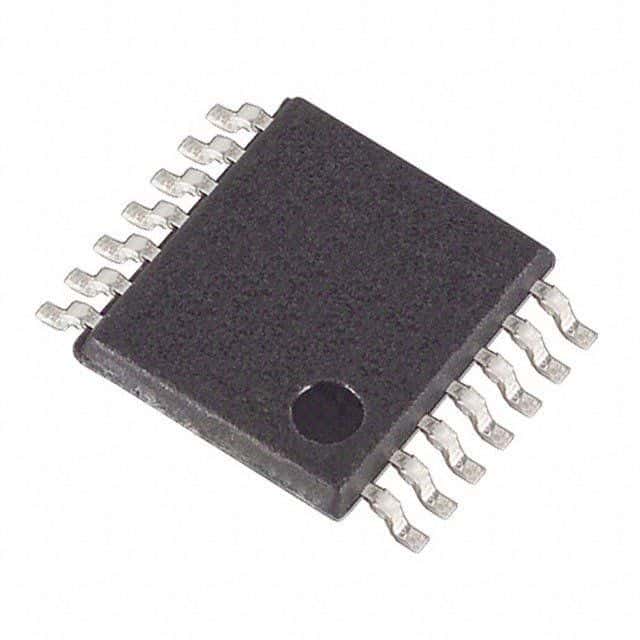

Product Images
