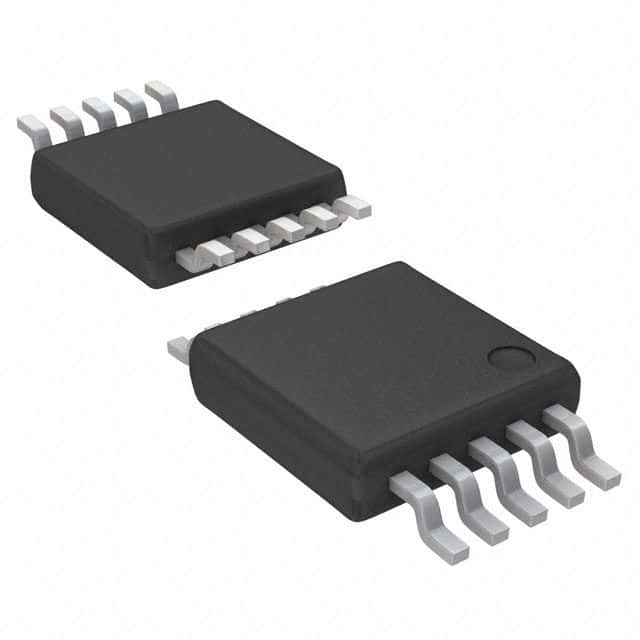

Dual SPDT analog switch IC, featuring 2 circuits and 2 channels. Operates with a single supply voltage from 1.8V to 5.5V, consuming a maximum of 1µA supply current. Offers a low on-state resistance of 4Ω and a maximum power dissipation of 330mW. Packaged in a compact 10-pin UMAX surface-mount format with dimensions of 3.05mm x 3.05mm x 0.95mm. RoHS compliant and lead-free.
Sign in to ask questions about the Maxim MAX4636EUB+ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Maxim MAX4636EUB+ technical specifications.
| Package/Case | UMAX |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 330mW |
| Max Supply Current | 1uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| On-State Resistance | 4R |
| Operating Supply Current | 1uA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Throw Configuration | SPDT |
| Width | 3.05mm |
| RoHS | Compliant |
