8-channel relay driver IC with SPI interface, supporting a supply voltage range of 2.3V to 5.5V. Features 70mA maximum output current per channel and a low-side output configuration. Operates within a temperature range of -40°C to 85°C, with a fall time of 200ns. Packaged in a 4.1mm x 4.1mm x 0.75mm surface-mount TQFN package.
Current70uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4820ETP+ technical specifications.
General
| Fall Time | 200ns |
| Height | 0.75mm |
| Interface | SPI |
| Length | 4.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 70mA |
| Max Power Dissipation | 1.35W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Drivers | 8 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 5V |
| Output Configuration | Low Side |
| Output Current | 70mA |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 70uA |
| Width | 4.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX4820ETP+ Datasheet
Download the complete datasheet for Maxim MAX4820ETP+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

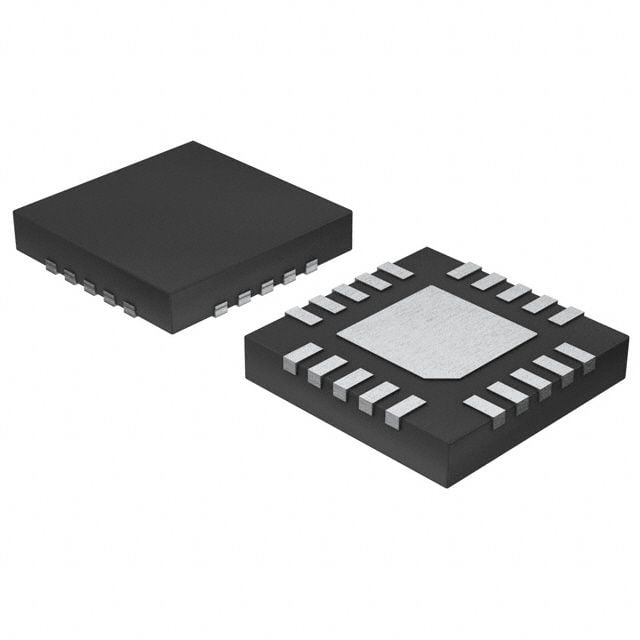

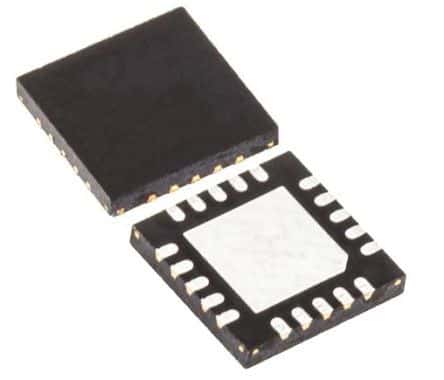

Product Images
