Eight-channel relay driver IC, surface mountable in a TSSOP package. Features parallel/serial input, 70mA output current per channel, and 2R on-state resistance. Operates from 2.3V to 5.5V supply voltage with a typical 5V operating voltage. Offers 1µs turn-on and turn-off delay times, with a 200ns fall time. Maximum power dissipation is 1.35W, and it operates within a -40°C to 85°C temperature range.
PackageTSSOP
Current70uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4821EUP+T technical specifications.
General
| Package/Case | TSSOP |
| Fall Time | 200ns |
| Input Type | PARALLEL/SERIAL |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Max Power Dissipation | 1.35W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Drivers | 8 |
| Number of Outputs | 8 |
| On-State Resistance | 2R |
| Operating Supply Voltage | 5V |
| Output Current | 70mA |
| Output Current per Channel | 70mA |
| Output Voltage | 400mV |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Supply Current | 70uA |
| Turn-Off Delay Time | 1us |
| Turn-On Delay Time | 1us |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX4821EUP+T Datasheet
Download the complete datasheet for Maxim MAX4821EUP+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

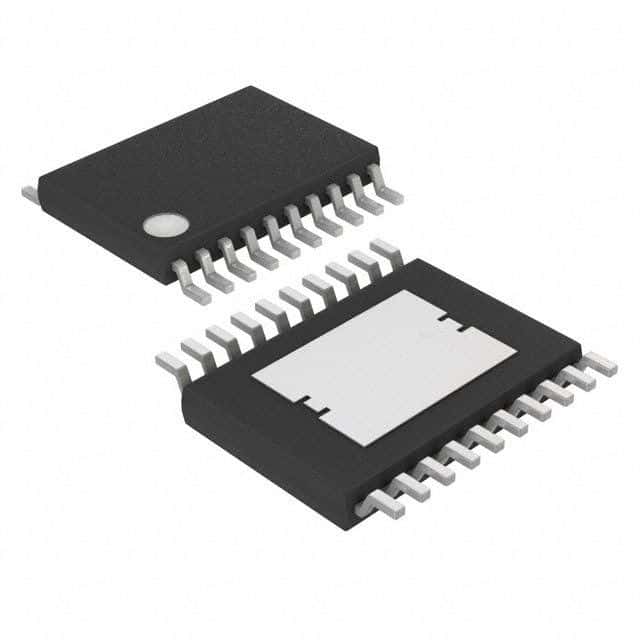

Product Images
