8-channel hot swap controller IC for power management. Features 410mA output current per channel with a maximum of 960mA total output current. Operates from a 2.7V to 5.5V supply voltage, with a low 10µA operating supply current. Offers an on-state resistance of 3Ω and a fall time of 2µs. Packaged in a 20-TQFN surface mount package, measuring 5.1mm x 5.1mm x 0.75mm, and is RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4896ETP+ technical specifications.
General
| Fall Time | 2us |
| Height | 0.75mm |
| Length | 5.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 960mA |
| Max Power Dissipation | 1.702W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Drivers | 8 |
| Number of Outputs | 8 |
| On-State Resistance | 3R |
| Operating Supply Current | 10uA |
| Output Current | 420mA |
| Output Current per Channel | 410mA |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Width | 5.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX4896ETP+ Datasheet
Download the complete datasheet for Maxim MAX4896ETP+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

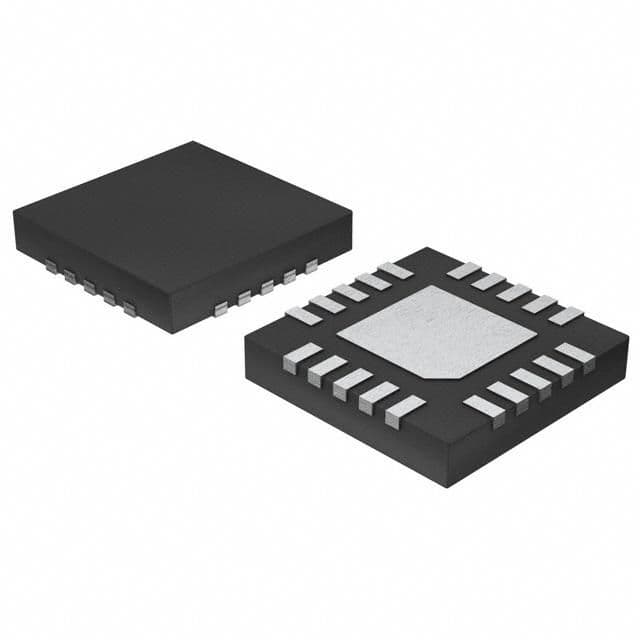

Product Images
