Maxim
MAX4993EVB+
Dual SPDT Analog Switch, 500mR On-State Resistance, 5.5V Supply Voltage, Surface Mount
The MAX4993EVB+ is a dual SPDT analog switch with an on-state resistance of 500mR. It operates within a temperature range of -40°C to 85°C and can dissipate up to 559mW of power. The device is supplied with a voltage between 1.8V and 5.5V and draws a maximum current of 6uA. It is available in a surface mount package and is compliant with RoHS regulations.
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4993EVB+ technical specifications.
General
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 559mW |
| Max Supply Current | 6uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| On-State Resistance | 500mR |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Throw Configuration | DPDT |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX4993EVB+ Datasheet
Download the complete datasheet for Maxim MAX4993EVB+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

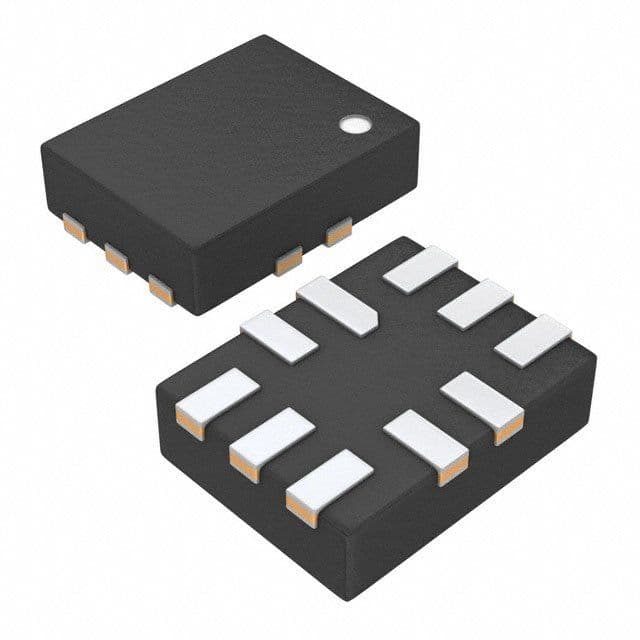

Product Images
