Dual output positive linear voltage regulator IC featuring a 1.235V reference voltage with 1.5% accuracy. Operates from a 4V to 72V input range, delivering up to 250mA output current. Offers fixed 3.3V and adjustable output voltages, with a 1MHz switching frequency. Designed for surface mount applications with a 5mm x 5mm x 0.73mm footprint. Suitable for operation across a -40°C to 125°C temperature range.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Maxim MAX5092AATE+ technical specifications.
General
| Accuracy | 1.5% |
| Height | 0.73mm |
| Input Bias Current | 65uA |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Input Voltage | 72V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Max Power Dissipation | 2.666W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 250mA |
| Output Type | Fixed, Adjustable |
| Output Voltage | 3.3V |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 65uA |
| Reference Voltage | 1.235V |
| RoHS Compliant | Yes |
| Voltage - Output 1 | 11V |
| Voltage - Output 2 | 9V |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX5092AATE+ Datasheet
Download the complete datasheet for Maxim MAX5092AATE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

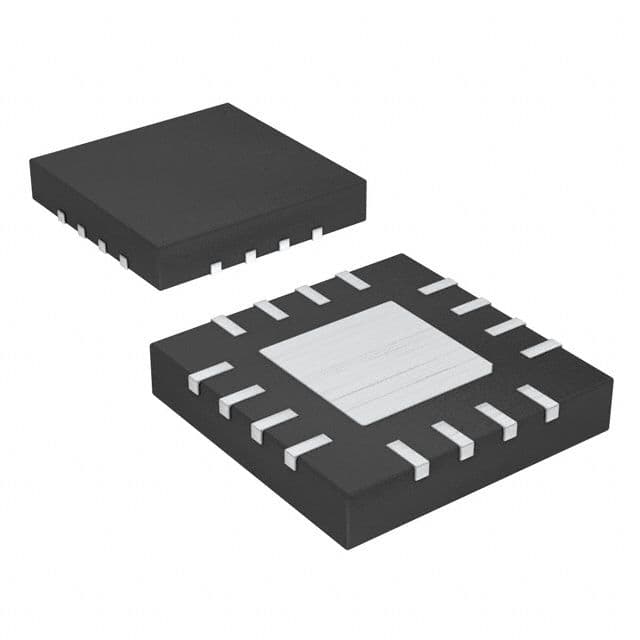

Product Images
