1-channel hot swap controller for positive high voltage applications. Features auto-retry and thermal limit protection. Operates from a 9V to 80V supply range with a maximum operating temperature of 85°C. Surface mountable in a lead-free SOIC package, measuring 5mm x 4mm x 1.5mm. RoHS compliant with 1.4mA operating supply current.
PackageSOIC
MountingSurface Mount
Power470mW
Quick Jump:
Technical Specifications
Maxim MAX5947BESA+ technical specifications.
General
| Package/Case | SOIC |
| Features | Auto Retry, Thermal Limit |
| Height | 1.5mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 80V |
| Min Supply Voltage | 9V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Current | 1.4mA |
| Output Voltage | 2.5V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Power Dissipation | 470mW |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX5947BESA+ Datasheet
Download the complete datasheet for Maxim MAX5947BESA+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

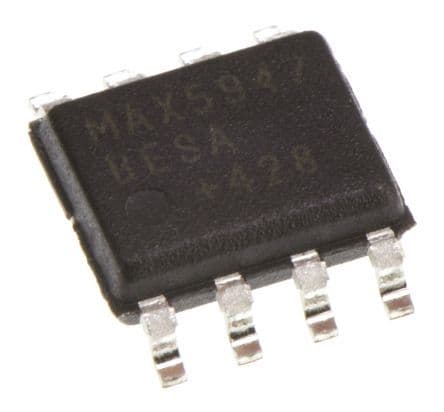

Product Images
