Inverting charge pump DC/DC controller and regulator, featuring a fixed/adjustable output voltage range of -1.5V to -5.5V and a maximum output current of 100mA. Operates with an input voltage range of 1.5V to 5.5V and a supply voltage of 3V to 5.5V. This through-hole mounted component is housed in a PDIP package, measuring 4.45mm in height, 4.45mm in length, and 7.87mm in width. It offers a maximum operating temperature of 85°C and is RoHS compliant.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim MAX660EPA+ technical specifications.
General
| Package/Case | PDIP |
| Height | 4.45mm |
| Lead Free | Lead Free |
| Length | 4.45mm |
| Logic Function | Inverting |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 1.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Output Voltage | -1.5V |
| Min Output Voltage | -5.5V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Operating Supply Current | 1mA |
| Output Current | 100mA |
| Output Type | Fixed, Adjustable |
| Output Voltage | 11V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Boost, Charge Pump |
| Weight | 0.032805oz |
| Width | 7.87mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX660EPA+ Datasheet
Download the complete datasheet for Maxim MAX660EPA+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

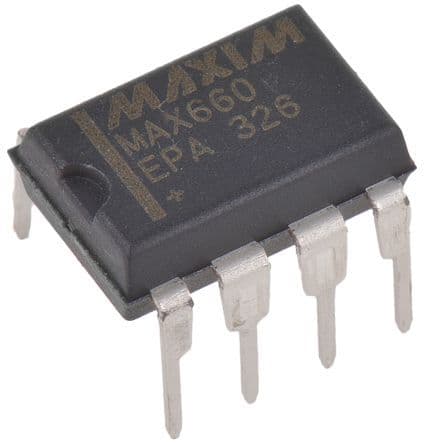

Product Images
