Active DC to DC switching regulator with inverting logic function. Features a 1.5V to 5.5V input voltage range and provides a fixed or adjustable output voltage from -1.5V to -5.5V, with a maximum output current of 100mA. This surface mount component operates within a -40°C to 85°C temperature range and utilizes a charge pump topology. Packaged in a 3.9mm wide, 5mm long, 1.5mm high SOIC package, it is RoHS compliant.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications

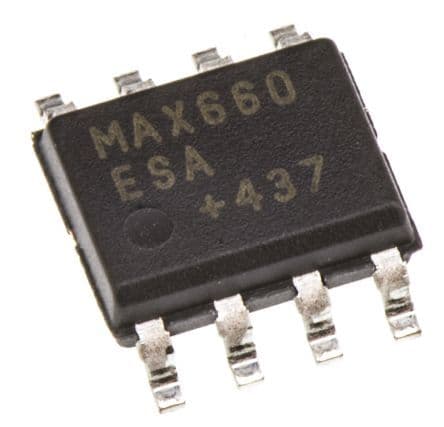

Maxim MAX660ESA+ technical specifications.
General
Package/Case
SOIC
Height
1.5mm
Lead Free
Lead Free
Length
5mm
Logic Function
Inverting
Max Input Voltage
5.5V
Min Input Voltage
1.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
-1.5V
Min Output Voltage
-5.5V
Max Supply Voltage
5.5V
Min Supply Voltage
1.5V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Current
500uA
Output Current
100mA
Output Type
Fixed, Adjustable
Output Voltage
11V
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
MAX660
Synchronous Rectifier
No
Topology
Boost, Charge Pump
Weight
0.006596oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX660ESA+ Datasheet
Download the complete datasheet for Maxim MAX660ESA+ to view detailed technical specifications.
