Fan-speed regulator and monitor featuring an I2C/SMBus compatible interface. Operates with supply voltages from 3V to 5.5V, delivering up to 5.2V output voltage and 100mA output current. Supports a 400kHz interface frequency and offers 8-bit resolution for precise fan speed control. Packaged in a lead-free QSOP (4.98mm x 3.99mm x 1.65mm) for surface-mount applications.
Frequency400kHz
PackageQSOP
Voltage5V
Current10mA
Quick Jump:
Technical Specifications
Maxim MAX6651EEE+ technical specifications.
General
| Package/Case | QSOP |
| Frequency | 400kHz |
| Height | 1.65mm |
| Interface | I2C, SMBus, 2-Wire |
| Lead Free | Lead Free |
| Length | 4.98mm |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Max Output Voltage | 5.2V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Number of Outputs | 1 |
| Output Current | 100mA |
| Output Type | Digital |
| Output Voltage | 5.2V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Supply Current | 10mA |
| Termination | SMD/SMT |
| Voltage | 5V |
| Width | 3.99mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX6651EEE+ Datasheet
Download the complete datasheet for Maxim MAX6651EEE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

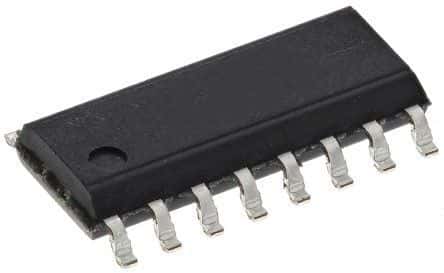

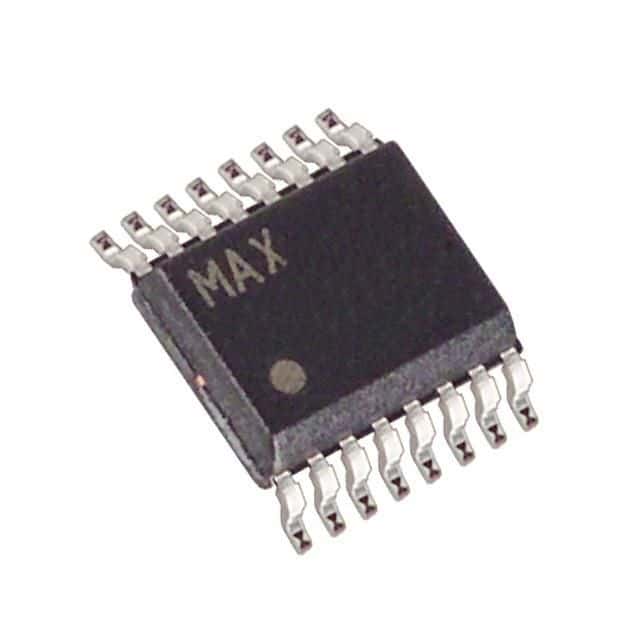

Product Images
