Maxim
MAX6835FXSD3-T

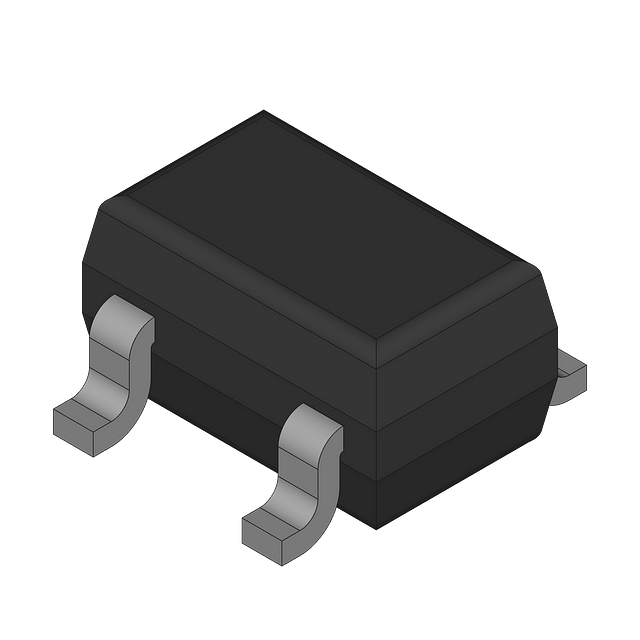

Single-Function Power Management IC, 1.2V to 3.6V, 0.55V to 1.2V, 0°C to 85°C, SC-70, 4 PIN
The MAX6835FXSD3-T is a single-function power management IC from Maxim, operating within a temperature range of 0°C to 85°C. It has a nominal supply voltage of 1.2V and a maximum supply voltage of 3.6V, with a minimum supply voltage of 0.55V. This IC is packaged in a SC-70, 4 PIN package type.
Quick Jump:
Technical Specifications
Maxim MAX6835FXSD3-T technical specifications.
General
| Max Operating Temperature | 85 |
| Number of Terminals | 4 |
| Min Operating Temperature | 0 |
| Terminal Position | DUAL |
| JEDEC Package Code | R-PDSO-G4 |
| Width | 1.25 |
| Length | 2 |
| Pin Count | 4 |
| Number of Functions | 1 |
| Temperature Grade | OTHER |
| Supply Voltage-Nom (Vsup) | 1.2 |
| Supply Voltage-Max (Vsup) | 3.6 |
| Supply Voltage-Min (Vsup) | 0.55 |
| Number of Channels | 1 |
Compliance
| RoHS | No |
| Eccn Code | EAR99 |
| Lead Free | No |
| HTS Code | 8542.39.00.01 |
| REACH | not_compliant |
| Military Spec | False |
Datasheet
Maxim MAX6835FXSD3-T Datasheet
Download the complete datasheet for Maxim MAX6835FXSD3-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
