64-segment LED driver IC, QSOP package, featuring 400mA low-level output current and -50mA high-level output current. Operates from a 3.3V/5V supply voltage up to 5.5V. Offers a maximum power dissipation of 667mW and a maximum supply current of 15mA. This RoHS compliant component operates within a temperature range of -40°C to 85°C. Supplied on tape and reel in a 2500-piece package.
PackageQSOP
Power667mW
Quick Jump:
Technical Specifications
Maxim MAX6951EEE+T technical specifications.
General
| Package/Case | QSOP |
| High Level Output Current | -50mA |
| Lead Free | Lead Free |
| Low Level Output Current | 400mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 667mW |
| Max Supply Current | 15mA |
| Number of Segments | 64 |
| Operating Supply Voltage | 5.5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 667mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | MAX6951 |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX6951EEE+T Datasheet
Download the complete datasheet for Maxim MAX6951EEE+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

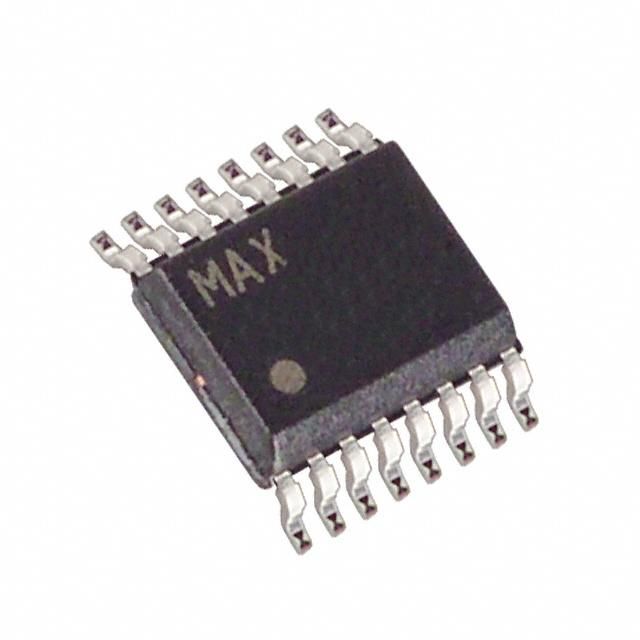

Product Images
