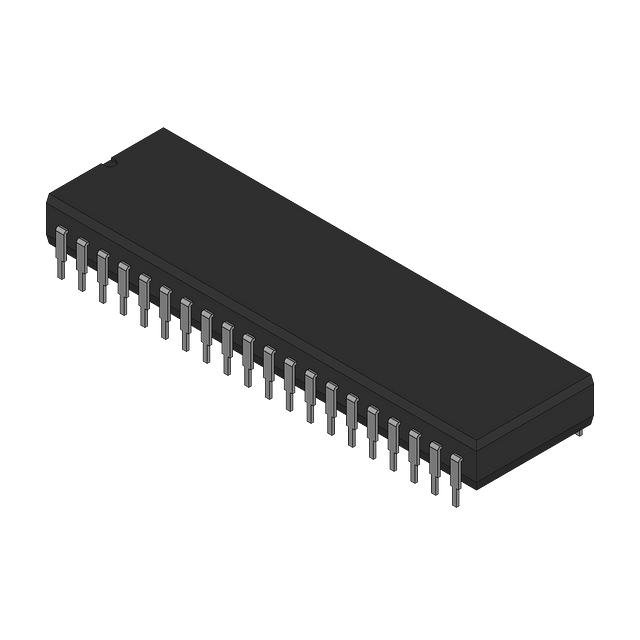

The MAX6954APL is a 128-segment serial driver with a 4-wire interface, operating from a 5.5V supply and dissipating up to 1.333W. It is packaged in a DIP-40 plastic package and is designed for through-hole mounting. The device operates over a temperature range of -40°C to 125°C and has a maximum operating supply current of 22mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Maxim MAX6954APL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Maxim MAX6954APL technical specifications.
| Package/Case | DIP |
| High Level Output Current | 55mA |
| Interface | Serial, 4-WIRE |
| Low Level Output Current | 935mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.333W |
| Mount | Through Hole |
| Number of Segments | 128 |
| Operating Supply Current | 22mA |
| Operating Supply Voltage | 5.5V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | No |
| RoHS | Not CompliantNo |
