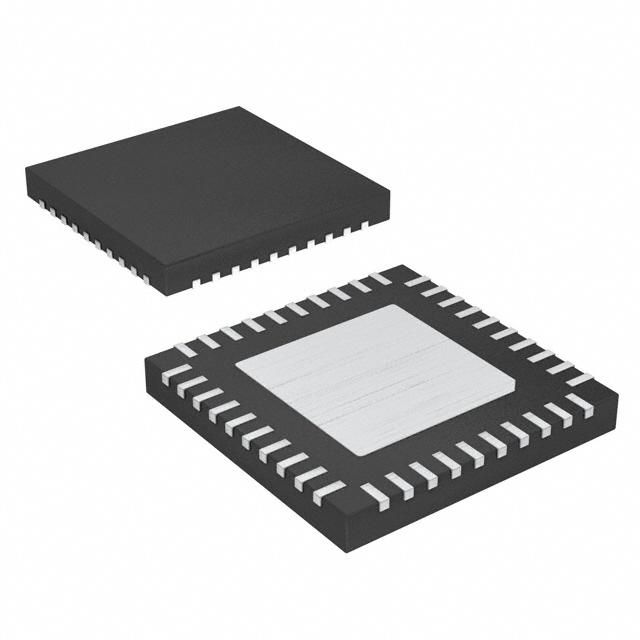

28-bit SPI I/O expander, surface mountable in a 40-TQFN package. Features a maximum operating frequency of 26MHz and a push-pull output type with 18mA output current. Operates from a supply voltage up to 5.5V, with a wide temperature range from -40°C to 125°C. This RoHS compliant, lead-free component is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Maxim MAX7301ATL+T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Maxim MAX7301ATL+T technical specifications.
| Frequency | 26MHz |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Frequency | 26MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of I/Os | 28 |
| Operating Supply Voltage | 5.5V |
| Output Current | 18mA |
| Output Type | PUSH-PULL |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 2.693W |
| RoHS Compliant | Yes |
| RoHS | Compliant |
