8-bit I/O expander IC, operating at up to 400kHz. Features I2C and SMBus serial interface, housed in a QFN package for surface mounting. Supports a supply voltage range of 2V to 3.6V, with a maximum power dissipation of 1.176W. This RoHS compliant component operates across a temperature range of -40°C to 125°C.
Frequency400kHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX7315ATE+ technical specifications.
General
| Package/Case | QFN |
| Frequency | 400kHz |
| Interface | I2C, SMBus, Serial |
| Lead Free | Lead Free |
| Max Frequency | 400kHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.176W |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of I/Os | 8 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX7315ATE+ Datasheet
Download the complete datasheet for Maxim MAX7315ATE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

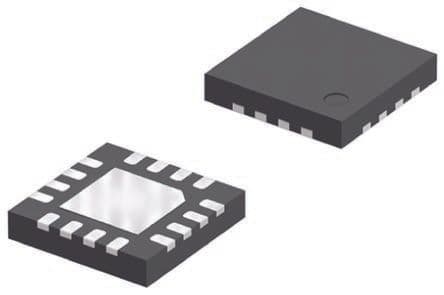

Product Images
