Boost DC/DC controller IC with a 300kHz switching frequency, capable of delivering up to 1A output current. Features a single positive output with adjustable voltage from 5V to 15V, powered by an input voltage range of 3V to 16.5V. Packaged in a 14-pin PDIP for through-hole mounting, this RoHS compliant component operates between 0°C and 70°C.
Frequency300kHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim MAX773CPD+ technical specifications.
General
| Package/Case | PDIP |
| Clock Sync | No |
| Frequency | 300kHz |
| Lead Free | Lead Free |
| Max Input Voltage | 16.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1A |
| Max Output Voltage | 15V |
| Min Output Voltage | 5V |
| Max Supply Voltage | 16.5V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Output Phases | 1 |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Voltage | 3V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Termination | Through Hole |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX773CPD+ Datasheet
Download the complete datasheet for Maxim MAX773CPD+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

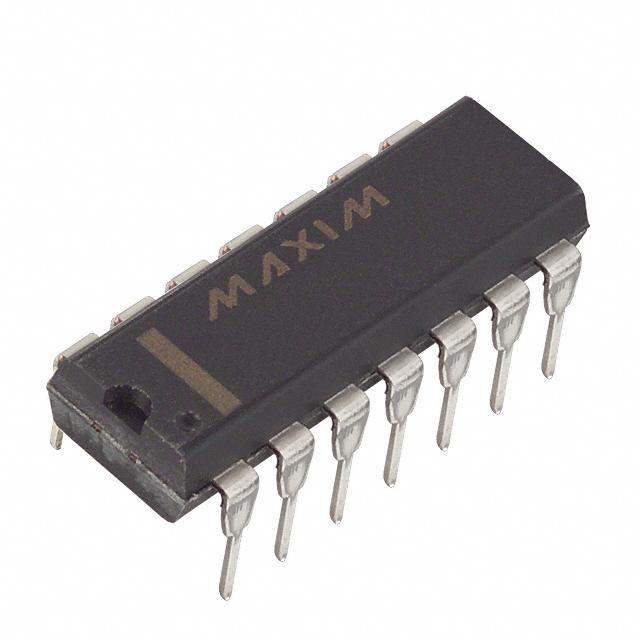

Product Images
