Supervisory circuit with active-low reset, monitoring a single voltage from 1.2V to 5.5V. Features a typical reset threshold voltage of 2.93V, with undervoltage and overvoltage thresholds at 2.88V and 2.98V respectively. Offers a 140ms reset timeout and a low operating supply current of 2.7µA. Packaged in a SOT-143 surface-mount case, this RoHS compliant component has a maximum power dissipation of 320mW and operates within a temperature range of -40°C to 85°C.
PackageSOT-143
Voltage3V
MountingSurface Mount
Power320mW
Quick Jump:
Technical Specifications
Maxim MAX811SEUS+T technical specifications.
General
Package/Case
SOT-143
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
320mW
Max Reset Threshold Voltage
2.98V
Min Reset Threshold Voltage
2.88V
Max Supply Voltage
5.5V
Min Supply Voltage
1.2V
Mount
Surface Mount
Number of Voltages Monitored
1
Operating Supply Current
2.7uA
Output
TOTEM-POLE
Overvoltage Threshold
2.98V
Package Quantity
2500
Packaging
Tape and Reel
Power Dissipation
320mW
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
140ms
RoHS Compliant
Yes
Series
MAX811, MAX812
Threshold Voltage
2.93V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
2.88V
Voltage
3V
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Maxim MAX811SEUS+T Datasheet
Download the complete datasheet for Maxim MAX811SEUS+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

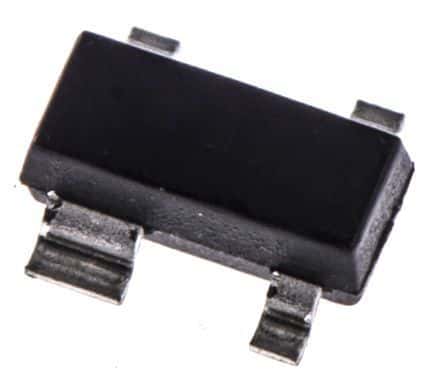

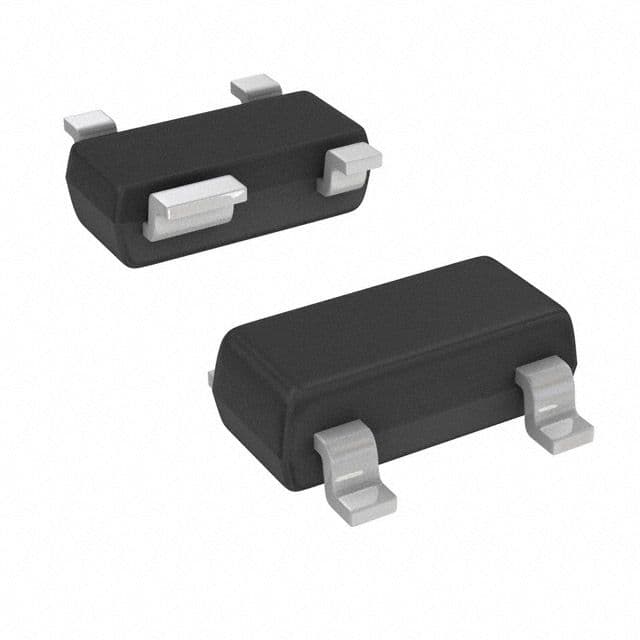

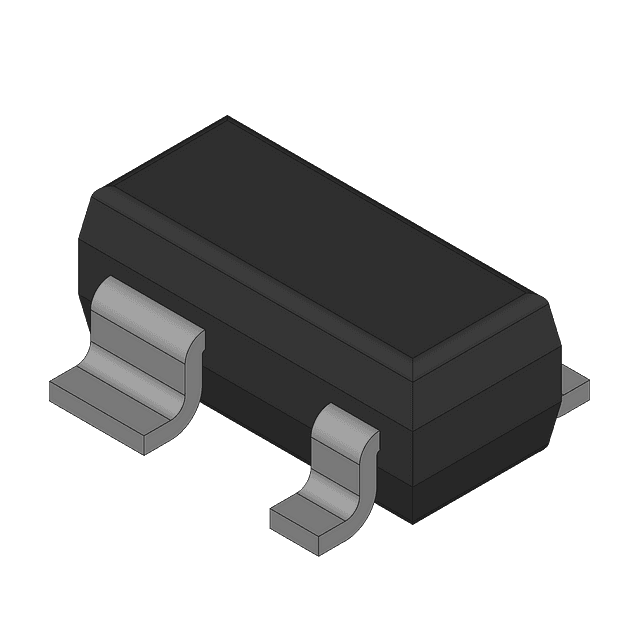

Product Images
