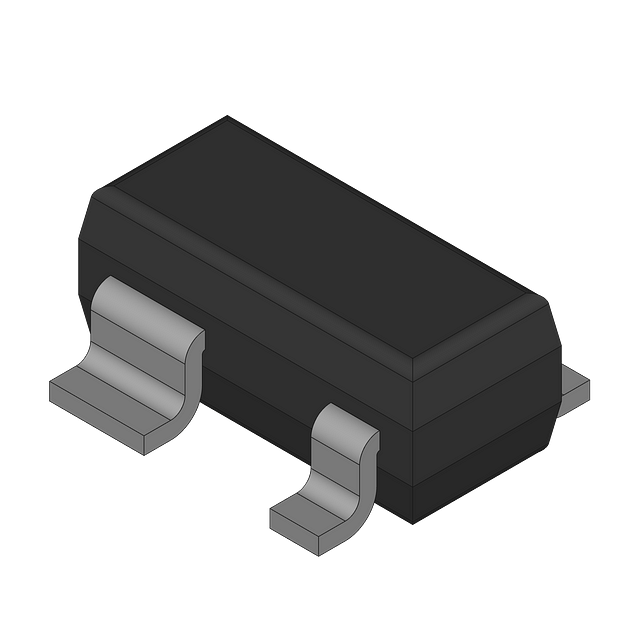

The MAX812LEUS-T is a simple reset/power-on reset IC with a threshold voltage of 4.63V and a reset timeout of 140ms. It operates over a temperature range of -40°C to 85°C and has a maximum power dissipation of 320mW. The device is available in a TO-253-4 package and is not RoHS compliant. It is designed for surface mount applications and has an active high reset output.
Checking distributor stock and pricing after the page loads.
Maxim MAX812LEUS-T technical specifications.
| Package/Case | TO-253-4 |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 320mW |
| Max Reset Threshold Voltage | 4.72V |
| Min Reset Threshold Voltage | 4.54V |
| Min Supply Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Voltages Monitored | 1 |
| Output | TOTEM-POLE |
| Reset | Active High |
| Reset Timeout | 140ms |
| RoHS Compliant | No |
| Threshold Voltage | 4.63V |
| Type | Simple Reset/Power-On Reset |
| Watchdog Timer | No |
| RoHS | Not Compliant |
No datasheet is available for this part.
