Adjustable positive linear voltage regulator IC, surface mountable in a UMAX package. Delivers up to 1A output current with a low dropout voltage of 100mV. Features 0.6% accuracy and a maximum input voltage of 3.6V. Operates across a wide temperature range of -40°C to 85°C.
PackageUMAX
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Maxim MAX8517EUB+ technical specifications.
General
| Accuracy | 0.6% |
| Package/Case | UMAX |
| Dropout Voltage | 100mV |
| Height | 0.95mm |
| Input Bias Current | 340uA |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Min Current Limit | 1.6A |
| Max Input Voltage | 3.6V |
| Min Input Voltage | 1.425V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 3.4V |
| Min Output Voltage | 500mV |
| Max Power Dissipation | 824mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.4V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 3.4V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 340uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 3.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX8517EUB+ Datasheet
Download the complete datasheet for Maxim MAX8517EUB+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

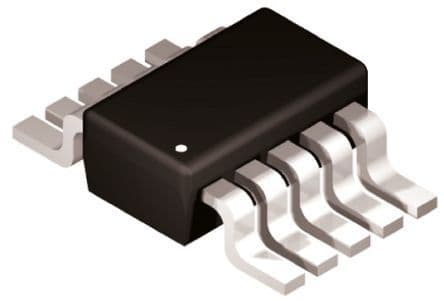

Product Images
