Adjustable positive linear voltage regulator IC with a maximum output current of 4A. Features a low dropout voltage of 100mV and a 1% accuracy. Operates with an input voltage range of 1.425V to 3.6V, providing an adjustable output voltage from 500mV to 3.4V. Housed in a compact 5.1mm x 5.1mm x 0.75mm QFN package for surface mounting. RoHS compliant with a maximum operating temperature of 85°C.
PackageQFN
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Maxim MAX8556ETE+ technical specifications.
General
| Accuracy | 1% |
| Package/Case | QFN |
| Dropout Voltage | 100mV |
| Height | 0.75mm |
| Lead Free | Lead Free |
| Length | 5.1mm |
| Max Input Voltage | 3.6V |
| Min Input Voltage | 1.425V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 4A |
| Max Output Voltage | 3.4V |
| Min Output Voltage | 500mV |
| Max Power Dissipation | 2.6667W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 4A |
| Output Type | Adjustable |
| Output Voltage | 3.4V |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 800uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Width | 5.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX8556ETE+ Datasheet
Download the complete datasheet for Maxim MAX8556ETE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

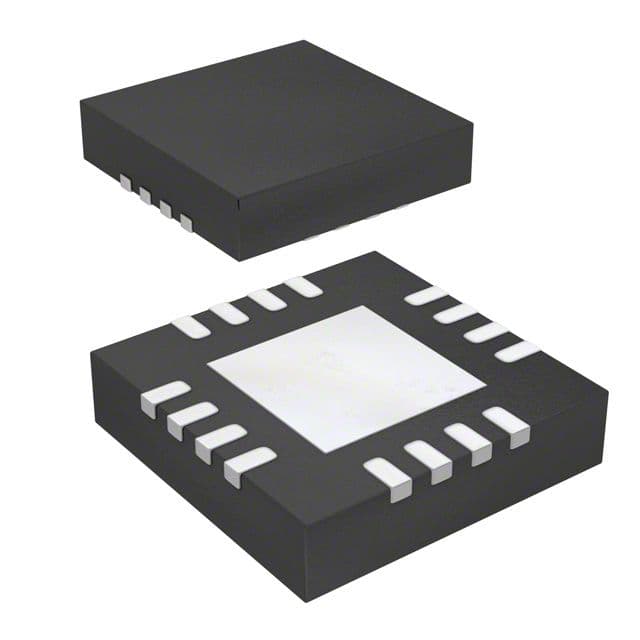

Product Images
