Inverting charge pump IC with adjustable output voltage from -3.6V to -11V, capable of delivering up to 35mA. Features a 450kHz switching frequency and operates from a 1.8V to 5.5V input supply. Packaged in a 10-pin uMAX surface-mount case with dimensions of 3.15mm x 3.15mm x 0.94mm. This RoHS compliant component offers a low operating supply current of 50uA and a maximum power dissipation of 444mW, suitable for a wide temperature range of -40°C to 85°C.
Frequency450kHz
PackageUMAX
MountingSurface Mount
Power444mW
Quick Jump:
Technical Specifications
Maxim MAX868EUB+ technical specifications.
General
| Package/Case | UMAX |
| Frequency | 450kHz |
| Height | 0.94mm |
| Lead Free | Lead Free |
| Length | 3.15mm |
| Logic Function | Inverting |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 1.8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 35mA |
| Max Output Voltage | -3.6V |
| Min Output Voltage | -10V |
| Max Power Dissipation | 444mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Current | 50uA |
| Output Current | 30mA |
| Output Type | Fixed, Adjustable |
| Output Voltage | -11V |
| Packaging | Rail/Tube |
| Power Dissipation | 444mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Charge Pump |
| Width | 3.15mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX868EUB+ Datasheet
Download the complete datasheet for Maxim MAX868EUB+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

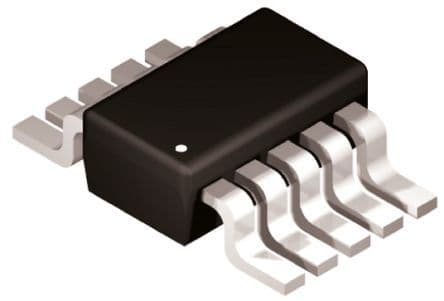

Product Images
