Surface mount charge pump IC featuring an inverting logic function. This component provides a fixed output voltage ranging from -0.5V to -4.9V with a maximum output current of 4mA. Operating with an input voltage between 2.5V and 5.5V, it offers a nominal output voltage of -2V. The device is housed in a 10-pin uMAX package with dimensions of 3.05mm x 3.05mm x 0.95mm and operates within a temperature range of -40°C to 85°C.
PackageUMAX
MountingSurface Mount
Power444mW
Quick Jump:
Technical Specifications
Maxim MAX881REUB+ technical specifications.
General
| Package/Case | UMAX |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Logic Function | Inverting |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | -500mV |
| Min Output Voltage | -4.9V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Nominal Output Voltage | -2V |
| Number of Outputs | 1 |
| Operating Supply Current | 500uA |
| Output Current | 4mA |
| Output Type | Fixed |
| Output Voltage | 6.1V |
| Packaging | Rail/Tube |
| Power Dissipation | 444mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Width | 3.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX881REUB+ Datasheet
Download the complete datasheet for Maxim MAX881REUB+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

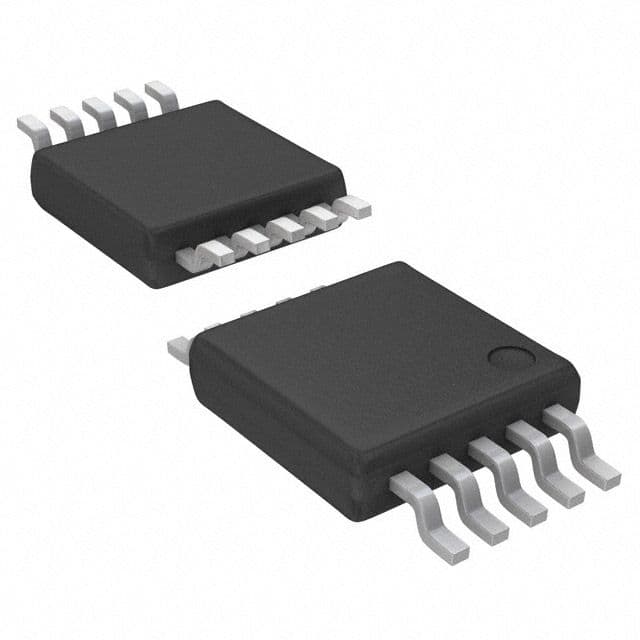

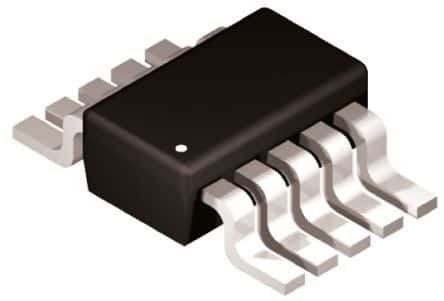

Product Images
