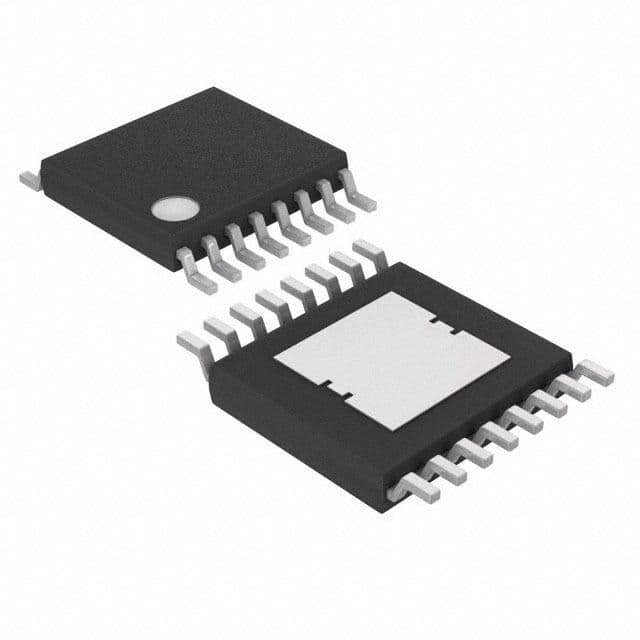

The MAX8869EUE18-T is a 1.8V fixed linear voltage regulator with a maximum junction temperature of 150°C. It has a maximum output current of 1A and a maximum input voltage of 6V. The device is packaged in a TSSOP-16 package and is suitable for use in applications where a stable voltage is required. The operating temperature range is from -40°C to 85°C.
Quick Jump:
Technical Specifications
Maxim MAX8869EUE18-T technical specifications.
General
| Max Operating Temperature | 85 |
| Number of Terminals | 16 |
| Min Operating Temperature | -40 |
| Terminal Position | DUAL |
| JEDEC Package Code | R-PDSO-G16 |
| Width | 4.4 |
| Length | 5 |
| Pin Count | 16 |
| Number of Functions | 1 |
| Number of Outputs | 1 |
| Output Voltage1-Min | 0.8 |
| Output Voltage1-Max | 5 |
| Output Current1-Max | 1 |
| Voltage Tolerance-Max | 1 |
| Adjustability | FIXED/ADJUSTABLE |
| Operating Temperature TJ-Max | 150 |
| Dropout Voltage1-Nom | 0.2 |
| Output Voltage1-Nom | 1.8 |
| Input Voltage Absolute-Max | 6 |
| Load Regulation-Max | 0.036 |
| Dropout Voltage1-Max | 0.35 |
Compliance
| RoHS | No |
| Eccn Code | EAR99 |
| Lead Free | No |
| HTS Code | 8542.39.00.01 |
| REACH | not_compliant |
| Military Spec | False |
Datasheet
Maxim MAX8869EUE18-T Datasheet
Download the complete datasheet for Maxim MAX8869EUE18-T to view detailed technical specifications.
No datasheet is available for this part.
