Single LVDS receiver IC, ideal for high-speed data transmission. Features a 500Mbps data rate and a 3ns propagation delay. Operates from a 3V to 3.6V supply voltage, with a typical 3.3V operating voltage. Designed for surface mount applications in a SC70-6 package, this lead-free and RoHS compliant component offers a wide operating temperature range of -40°C to 85°C. Supplied on tape and reel for efficient assembly.
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX9130EXT+T technical specifications.
General
| Data Rate | 500Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 245mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Propagation Delay | 3ns |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 3ns |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX9130EXT+T Datasheet
Download the complete datasheet for Maxim MAX9130EXT+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

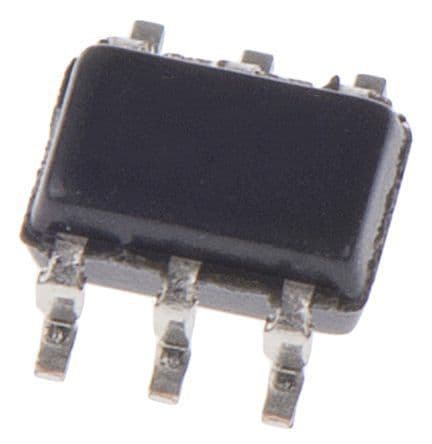

Product Images
