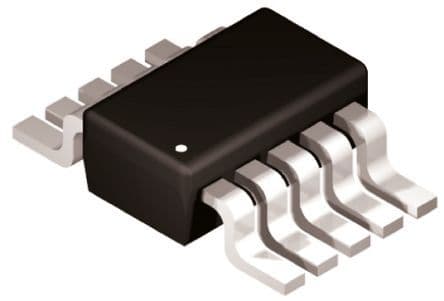

800Mbps LVDS multiplexer IC, featuring a 1-channel, 2-driver, 1-receiver configuration. This surface-mount component operates with a 3V to 3.6V supply voltage, drawing a maximum of 35mA. Housed in a compact UMAX package (3.05mm x 3.05mm x 0.95mm), it offers a propagation delay of 2.39ns and a turn-on delay of 3.23ns. RoHS compliant and lead-free, with an operating temperature range of -40°C to 85°C.
PackageUMAX
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX9174EUB+ technical specifications.
General
| Package/Case | UMAX |
| Data Rate | 800Mbps |
| Height | 0.95mm |
| Input | LVDS |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 444mW |
| Max Supply Current | 35mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Receivers | 1 |
| Operating Supply Current | 25mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Propagation Delay | 2.39ns |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 3.23ns |
| Width | 3.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX9174EUB+ Datasheet
Download the complete datasheet for Maxim MAX9174EUB+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
