Buffer/Repeater IC supporting LVDS input with a 400Mbps data rate. Features a 3.3V operating supply voltage, drawing a maximum of 15mA. Operates across a -40°C to 85°C temperature range. Housed in a compact 6-pin SC-70 surface-mount package, measuring 2.2mm x 1.35mm x 1mm. RoHS compliant with a propagation delay of 2.8ns.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX9180EXT+T technical specifications.
General
Package/Case
SC
Data Rate
400Mbps
Height
1mm
Input
LVDS
Lead Free
Lead Free
Length
2.2mm
Max Input Voltage
50mV
Min Input Voltage
-50mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
450mV
Max Power Dissipation
245mW
Max Supply Current
15mA
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
1
Number of Drivers
1
Number of Receivers
1
Operating Supply Current
10mA
Operating Supply Voltage
3.3V
Package Quantity
2500
Packaging
Tape and Reel
Propagation Delay
2.8ns
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Turn-On Delay Time
2.8ns
Weight
0.000988oz
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX9180EXT+T Datasheet
Download the complete datasheet for Maxim MAX9180EXT+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

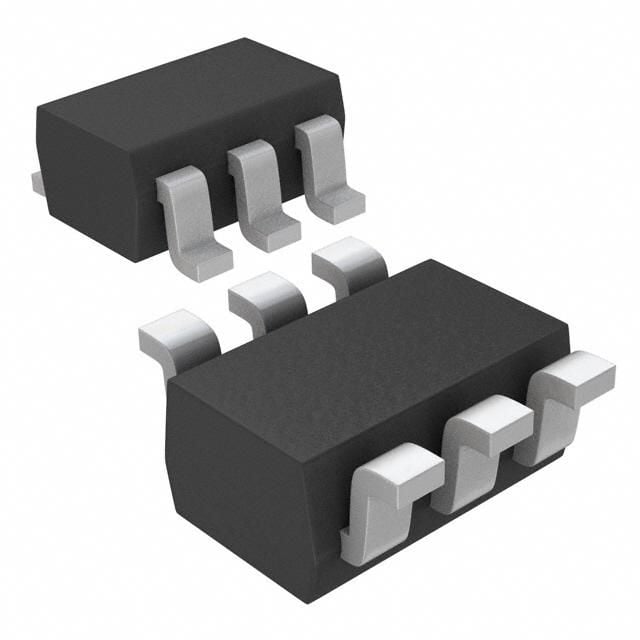

Product Images
