Single-channel, 1.8V video filter amplifier IC featuring an 8dB gain and 42.1MHz -3dB bandwidth. This surface mount component operates from 1.7V to 2.625V supply voltage, with a typical supply current of 2.9mA and a 43V/µs slew rate. It offers an output current of 82mA and a maximum power dissipation of 362mW, with an operating temperature range of -40°C to 125°C. The device is lead-free, RoHS compliant, and packaged in a UMAX case.
PackageUMAX
Current2.9mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX9510AUA+ technical specifications.
General
| -3db Bandwidth | 42.1MHz |
| Bandwidth | 42.1MHz |
| Package/Case | UMAX |
| Gain | 8dB |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 362mW |
| Max Supply Voltage | 2.625V |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 2.9mA |
| Output Current | 82mA |
| Output Current per Channel | 82mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | DirectDrive® |
| Slew Rate | 43V/µs |
| Supply Current | 2.9mA |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX9510AUA+ Datasheet
Download the complete datasheet for Maxim MAX9510AUA+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

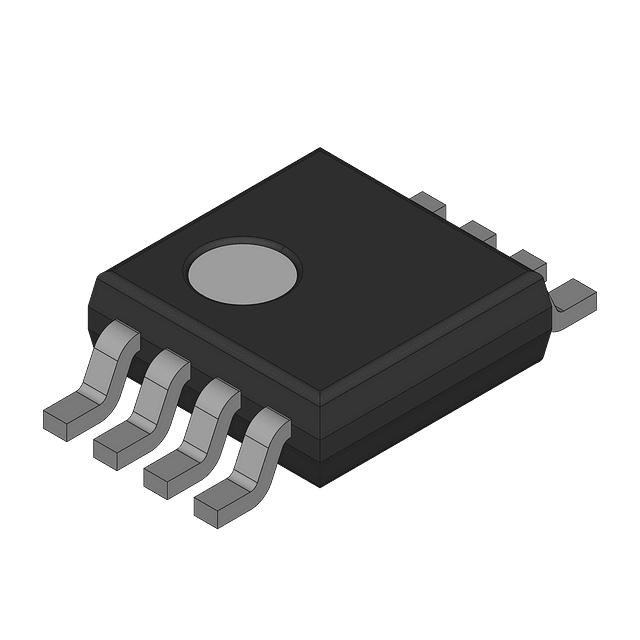

Product Images
