General purpose comparator IC featuring beyond-the-rails input operation. This single-channel logic IC offers a 2.7V to 5.5V operating supply voltage range, with a typical 5V supply. Key performance metrics include a 7ns propagation delay, 4.5ns response time, 86.02dB common mode rejection ratio, and 86.02dB power supply rejection ratio. The component operates from -40°C to 85°C and is housed in a lead-free, RoHS compliant 8-SOIC surface mount package.
PackageSOIC
Current11mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX961ESA+ technical specifications.
General
| Package/Case | SOIC |
| Common Mode Rejection Ratio | 86.02dB |
| Height | 1.5mm |
| Hysteresis | 3.5mV |
| Input Bias Current | 15uA |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Input Current | 15uA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 11mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Output Type | TTL |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 86.02dB |
| Propagation Delay | 7ns |
| Quiescent Current | 11mA |
| Radiation Hardening | No |
| Response Time | 4.5ns |
| RoHS Compliant | Yes |
| Series | Beyond-the-Rails™ |
| Supply Current | 11mA |
| Turn-On Delay Time | 4.5ns |
| Type | General Purpose |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX961ESA+ Datasheet
Download the complete datasheet for Maxim MAX961ESA+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

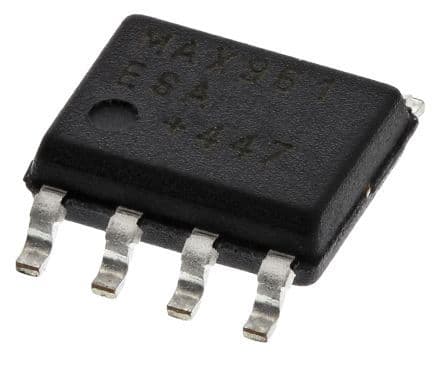

Product Images
