The MAX9675ECQ+ is a serial interface IC with a bandwidth of 110MHz. It operates over a temperature range of -40°C to 85°C and is supplied with a voltage between 2.7V and 5V. The IC is packaged in a TQFP package and is suitable for surface mount applications. The MAX9675ECQ+ is RoHS compliant and is available in quantities of 90 per packaging unit.
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX9675ECQ+ technical specifications.
General
| Bandwidth | 110MHz |
| Package/Case | TQFP |
| Independent Circuits | 1 |
| Interface | Serial |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Termination | SMD/SMT |
| Weight | 0.023175oz |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX9675ECQ+ Datasheet
Download the complete datasheet for Maxim MAX9675ECQ+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

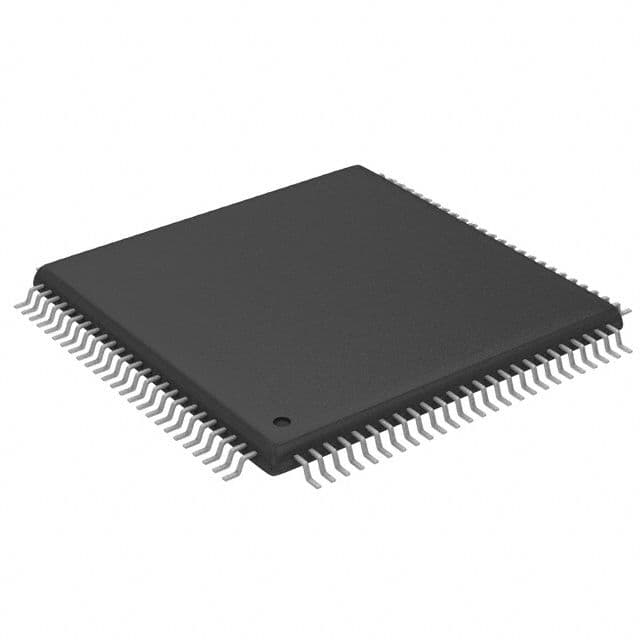

Product Images
