Dual-channel, Class D audio power amplifier IC designed for surface mount applications. Delivers up to 2.2W output power into a 4-ohm load, operating from a single 2.5V to 5.5V supply. Features 18dB voltage gain and 80dB power supply rejection ratio, with a quiescent current of 12.6mA. Packaged in a 24-TQFN, this lead-free and RoHS compliant component operates within a -40°C to +85°C temperature range.
Current6.3mA
MountingSurface Mount
Power1.3W
Quick Jump:
Technical Specifications
Maxim MAX9701ETG+ technical specifications.
General
| Lead Free | Lead Free |
| Load Impedance | 4R |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 2.2W |
| Max Output Voltage | 30mV |
| Max Power Dissipation | 1.6667W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 2 |
| Operating Supply Voltage | 5V |
| Output Power | 1.3W |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| Quiescent Current | 12.6mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 6.3mA |
| Supply Type | Single |
| Termination | SMD/SMT |
| Voltage Gain | 18dB |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX9701ETG+ Datasheet
Download the complete datasheet for Maxim MAX9701ETG+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

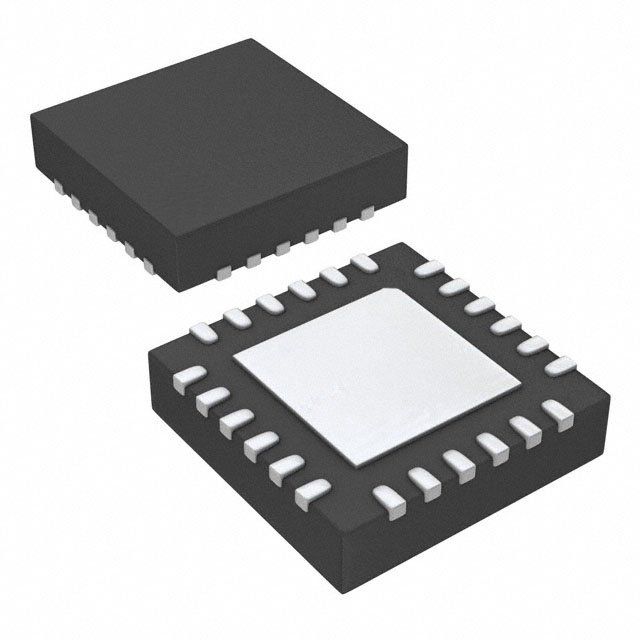

Product Images
