The MAX9750CETI+C2U is a triple supply triple audio amplifier from Maxim, operating over a temperature range of -40°C to 85°C. It is designed for surface mount applications and is compliant with RoHS regulations. The amplifier has a maximum output power of 2.2W and a quiescent current of 14mA. It is available in a rail/Tube packaging with 60 units per package.
MountingSurface Mount
Power2.2W
Quick Jump:
Technical Specifications
Maxim MAX9750CETI+C2U technical specifications.
General
| Dual Supply Voltage | 5V |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 2.2W |
| Max Power Dissipation | 1.9W |
| Mount | Surface Mount |
| Output Power | 2.2W |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Quiescent Current | 14mA |
| RoHS Compliant | Yes |
| Series | DirectDrive® |
| Supply Type | Triple |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX9750CETI+C2U Datasheet
Download the complete datasheet for Maxim MAX9750CETI+C2U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

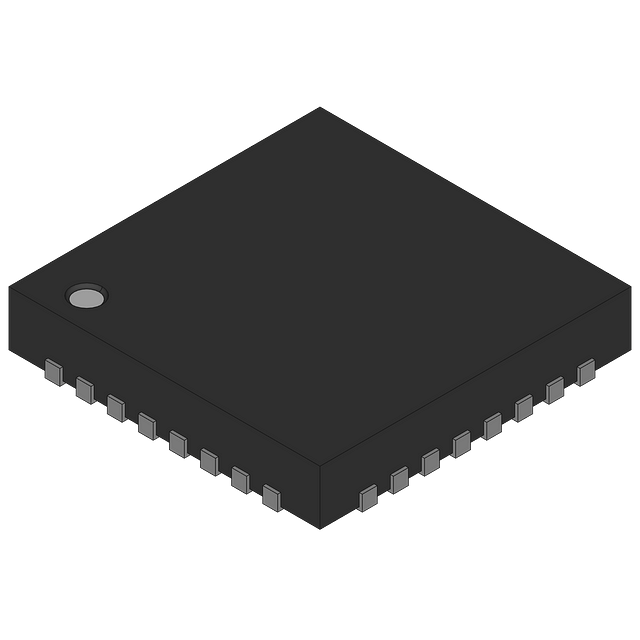

Product Images
