Single-channel, general-purpose operational amplifier featuring a 10kHz bandwidth and 0.4V/µs slew rate. This IC offers exceptional performance with a 140dB Common Mode Rejection Ratio and a low 1pA input bias current. It operates from a 2.85V to 5.5V supply range, consuming 780µA quiescent current. Packaged in a 10-pin UMAX, this RoHS-compliant component is suitable for applications requiring precise current sensing.
PackageUMAX
Quick Jump:
Technical Specifications
Maxim MAX9922EUB+T technical specifications.
General
| -3db Bandwidth | 10kHz |
| Bandwidth | 10kHz |
| Package/Case | UMAX |
| Common Mode Rejection Ratio | 140dB |
| Input Bias Current | 1pA |
| Input Offset Voltage (Vos) | 0.1uV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 362mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.85V |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 780uA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 99dB |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Slew Rate | 0.4V/µs |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX9922EUB+T Datasheet
Download the complete datasheet for Maxim MAX9922EUB+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

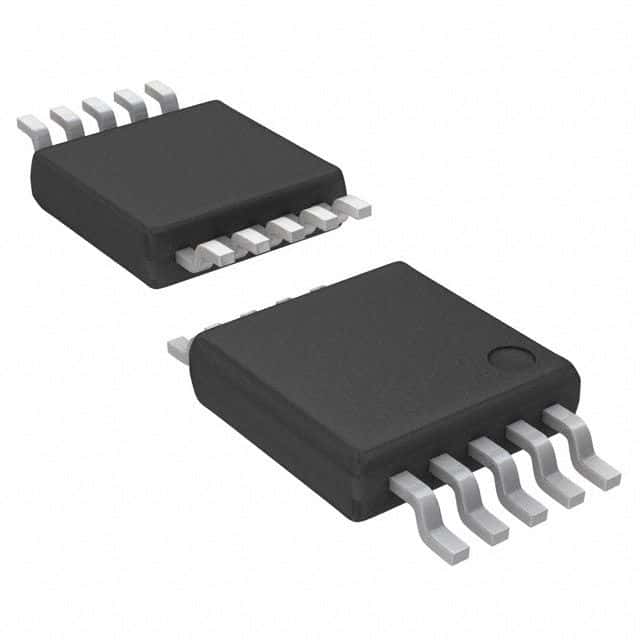

Product Images
