Single-channel, differential input analog output sensor interface IC. Features a 4.5V to 5.5V operating supply voltage range with a typical 5mA operating current. Housed in a compact UMAX package with dimensions of 3.05mm (L) x 3.05mm (W) x 0.95mm (H). Supports a wide operating temperature range from -40°C to 125°C and offers a maximum power dissipation of 707mW. RoHS compliant.
PackageUMAX
Power707mW
Quick Jump:
Technical Specifications
Maxim MAX9924UAUB+ technical specifications.
General
| Package/Case | UMAX |
| Height | 0.95mm |
| Input Type | DIFFERENTIAL |
| Length | 3.05mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 707.3mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Number of Channels | 1 |
| Operating Supply Current | 5mA |
| Operating Supply Voltage | 5V |
| Output Type | Analog |
| Packaging | Rail/Tube |
| Power Dissipation | 707mW |
| RoHS Compliant | Yes |
| Width | 3.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX9924UAUB+ Datasheet
Download the complete datasheet for Maxim MAX9924UAUB+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

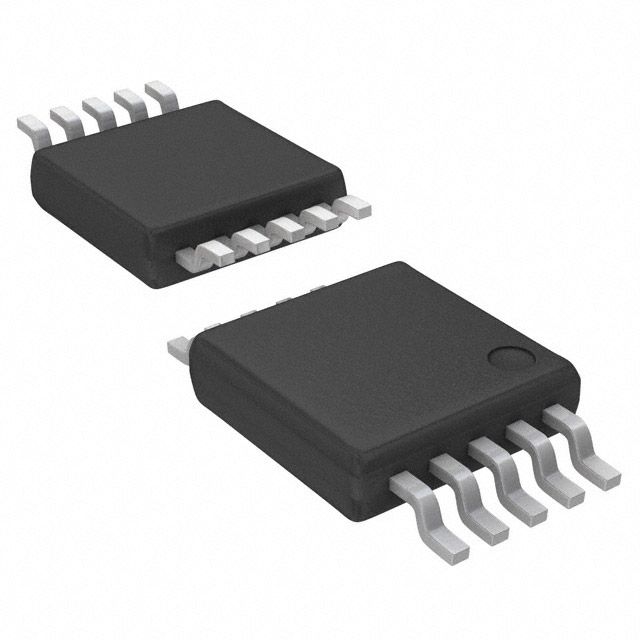

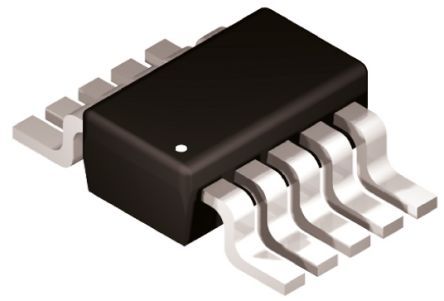

Product Images
