Technical Specifications
Maxim MAX9928FABT+T technical specifications.
General
| -3db Bandwidth | 150kHz |
| Package/Case | BGA |
| Common Mode Rejection Ratio | 104dB |
| Input Bias Current | 1.6uA |
| Input Offset Voltage (Vos) | 600uV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 308.3mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 20uA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 90dB |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX9928FABT+T Datasheet
Download the complete datasheet for Maxim MAX9928FABT+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

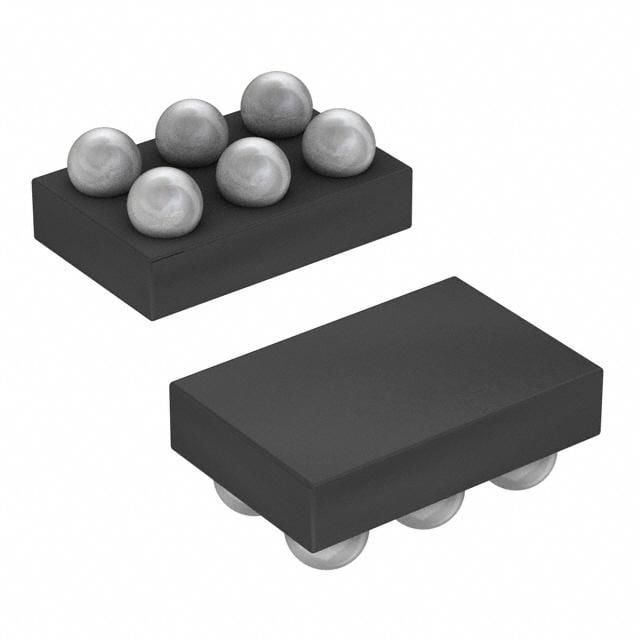

Product Images
