Technical Specifications
Maxim MAX9981ETX+ technical specifications.
General
| Package/Case | QFN |
| Frequency | 915MHz |
| Gain | 2.7dB |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Frequency | 915MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 2.2W |
| Mount | Surface Mount |
| Noise Figure | 10.8dB |
| Operating Supply Current | 325mA |
| Operating Supply Voltage | 5.25V |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | MAX9981 |
| Thickness | 900um |
| Weight | 0.003266oz |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX9981ETX+ Datasheet
Download the complete datasheet for Maxim MAX9981ETX+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

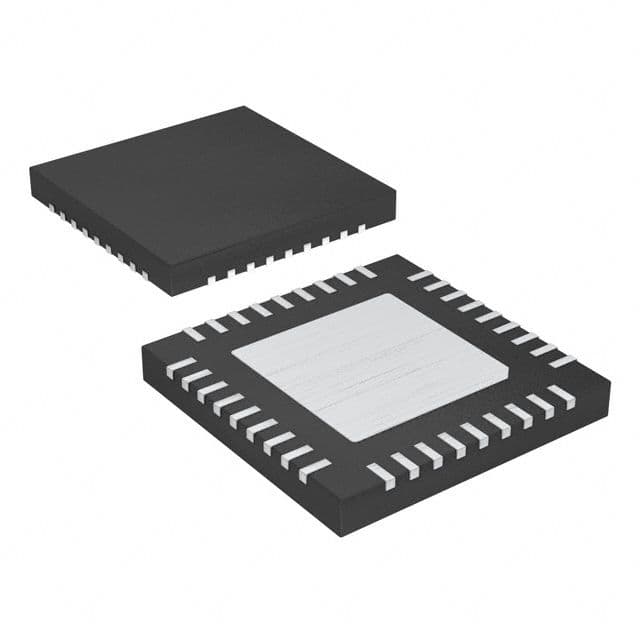

Product Images
