Technical Specifications
Maxim MAX9986ETP+D technical specifications.
General
| Frequency | 815MHz |
| Gain | 10dB |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 2.1W |
| Noise Figure | 9.3dB |
| Nominal Supply Current | 222mA |
| Operating Supply Current | 265mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | MAX9986E |
| Thickness | 750um |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX9986ETP+D Datasheet
Download the complete datasheet for Maxim MAX9986ETP+D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

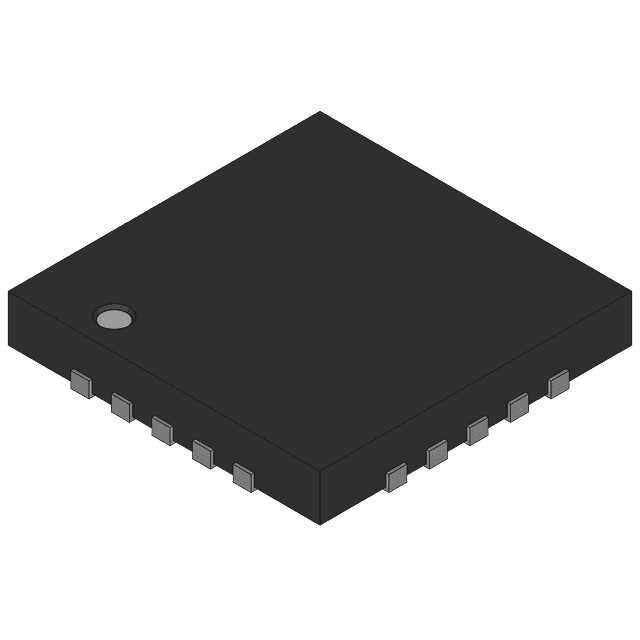

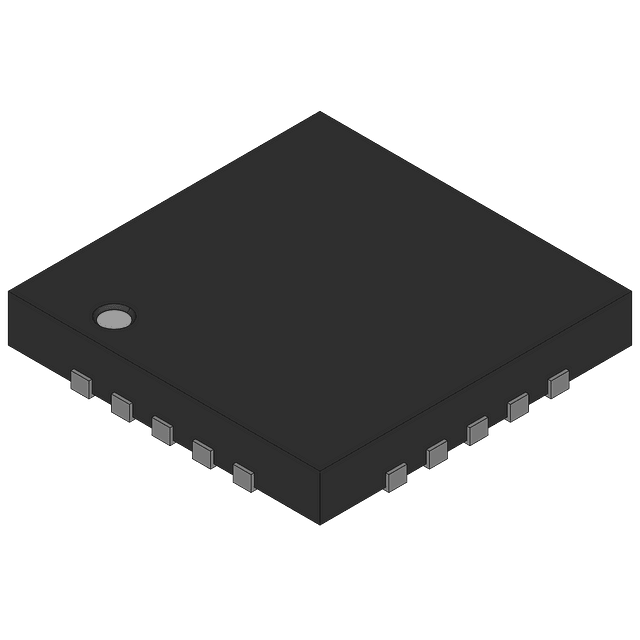

Product Images
