General purpose rectifier diode featuring a 75V DC rated voltage and 150mA average rectified current. This through-hole component offers a fast 4ns reverse recovery time and a maximum power dissipation of 500mW. It operates within a temperature range of -65°C to 175°C and has a maximum reverse leakage current of 5µA. The diode is housed in a DO-35 package.
PackageDO-35
Capacitance45pF
Current Rating150mA
MountingThrough Hole
Quick Jump:
Technical Specifications
MCC 1N4148 technical specifications.
General
| Average Rectified Current | 150mA |
| Capacitance | 45pF |
| Package/Case | DO-35 |
| Current Rating | 150mA |
| Lead Free | Contains Lead |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Max Reverse Leakage Current | 5uA |
| Max Reverse Voltage (DC) | 75V |
| Max Surge Current | 2A |
| Mount | Through Hole |
| Output Current | 150mA |
| Package Quantity | 10 |
| Packaging | Cut Tape |
| Polarity | Standard |
| Reverse Recovery Time | 4ns |
| RoHS Compliant | No |
| DC Rated Voltage | 75V |
Compliance
| RoHS | Not Compliant |
Datasheet
MCC 1N4148 Datasheet
Download the complete datasheet for MCC 1N4148 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

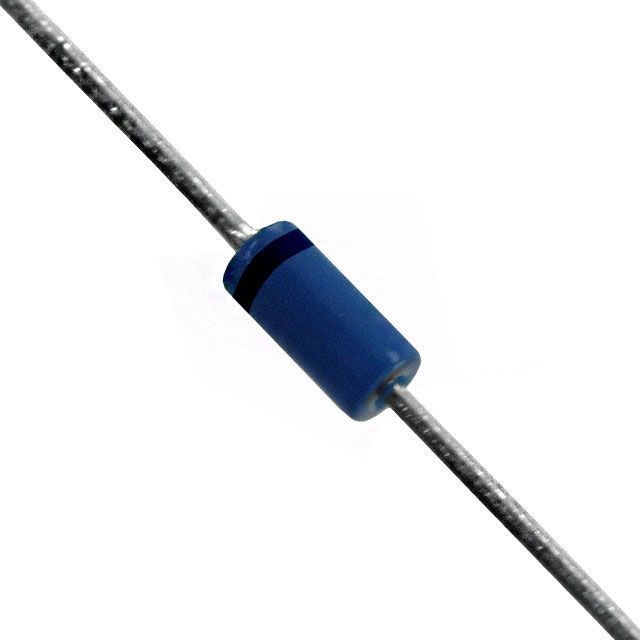

Product Images
