General purpose rectifier diode for surface mount applications. Features a maximum repetitive reverse voltage of 75V and an average rectified current of 100mA. Offers a low capacitance of 2pF and a fast reverse recovery time of 6ns. Packaged in tape and reel, this RoHS compliant component operates within a temperature range of -55°C to 150°C.
Capacitance2pF
MountingSurface Mount
PolarityStandard
Power350mW
Quick Jump:
Technical Specifications
MCC BAS16W-TP technical specifications.
General
| Average Rectified Current | 100mA |
| Capacitance | 2pF |
| Forward Current | 100mA |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 2.85mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 75V |
| Max Reverse Leakage Current | 1uA |
| Max Reverse Voltage (DC) | 75V |
| Max Surge Current | 2A |
| Mount | Surface Mount |
| Output Current | 200mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 2A |
| Polarity | Standard |
| Power Dissipation | 350mW |
| Radiation Hardening | No |
| Reverse Recovery Time | 6ns |
| Reverse Recovery Time-Max | 6ns |
| RoHS Compliant | Yes |
| Width | 1.8mm |
Compliance
| RoHS | Compliant |
Datasheet
MCC BAS16W-TP Datasheet
Download the complete datasheet for MCC BAS16W-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

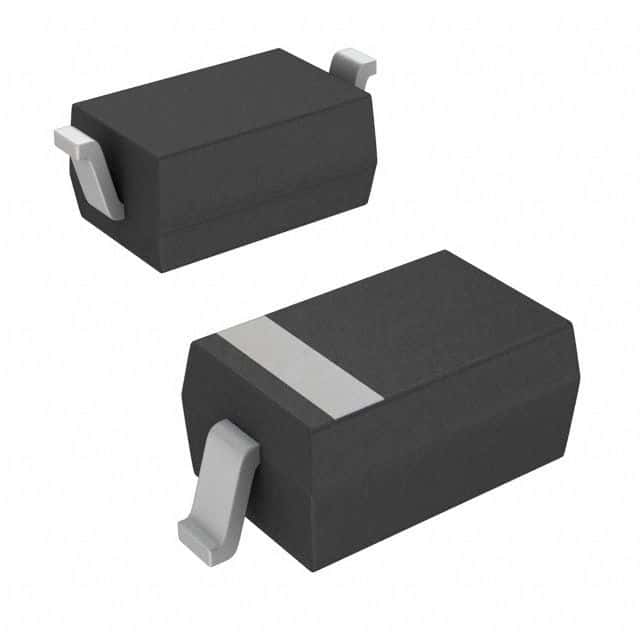

Product Images
