General purpose rectifier diode for small signal switching applications. Features a maximum repetitive reverse voltage of 120V and a forward current rating of 200mA. Offers a fast reverse recovery time of 50ns and a low capacitance of 1.5pF. Packaged in a compact 2-pin SOD-123 surface mount package, supplied on tape and reel. Operates within a temperature range of -55°C to 150°C with a power dissipation of 225mW.
Capacitance1.5pF
Current Rating200mA
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
MCC BAV19W-TP technical specifications.
General
| Average Rectified Current | 200mA |
| Capacitance | 1.5pF |
| Current Rating | 200mA |
| Forward Current | 200mA |
| Height | 1.12mm |
| Lead Free | Lead Free |
| Length | 3.04mm |
| Max Forward Surge Current (Ifsm) | 1A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 120V |
| Max Reverse Current | 100nA |
| Max Reverse Voltage (DC) | 100V |
| Max Surge Current | 1A |
| Mount | Surface Mount |
| Output Current | 200mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 1A |
| Polarity | Standard |
| Power Dissipation | 225mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Recovery Time | 50ns |
| Reverse Voltage | 120V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 120V |
| Width | 1.4mm |
Compliance
| RoHS | Compliant |
Datasheet
MCC BAV19W-TP Datasheet
Download the complete datasheet for MCC BAV19W-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

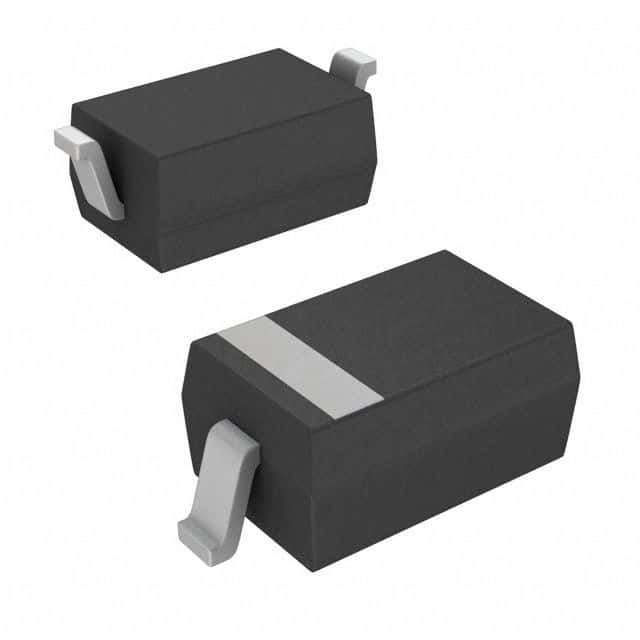

Product Images
