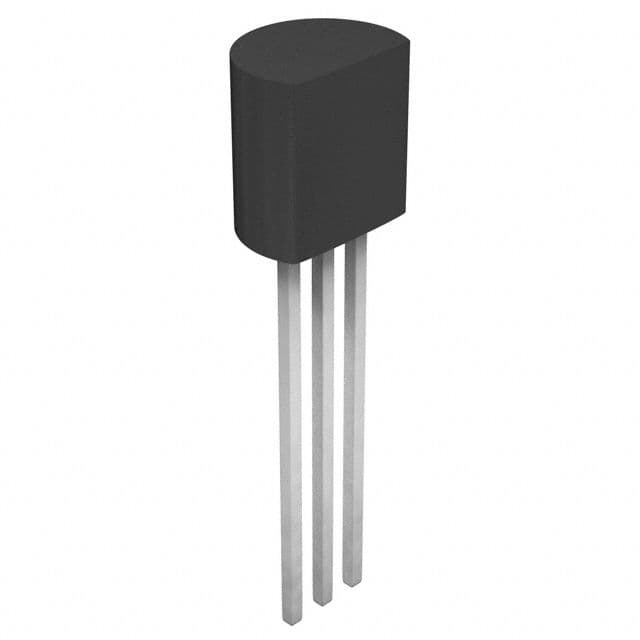

The BC546-AP is a TO-226-3 packaged bipolar junction transistor with a collector-emitter breakdown voltage of 65V and a maximum collector current of 100mA. It can operate at temperatures between -55°C and 150°C and has a maximum power dissipation of 625mW. The device is RoHS compliant and available in tape and reel packaging for through-hole mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the MCC BC546-AP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-226-3 |
| Collector Emitter Breakdown Voltage | 65V |
| Collector-emitter Voltage-Max | 300mV |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 625mW |
| Mount | Through Hole |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Transition Frequency | 300MHz |
| RoHS | Compliant |
