The MCC BZX84C10-TP is a surface mount zener diode with a maximum operating temperature range of -55°C to 150°C. It has a maximum power dissipation of 350mW and a zener voltage of 10V with a tolerance of 5%. The device is RoHS compliant and packaged in a SOT-23 case.
PackageSOT-23
MountingSurface Mount
Power350mW
Quick Jump:
Technical Specifications
MCC BZX84C10-TP technical specifications.
General
| Package/Case | SOT-23 |
| Impedance | 20R |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 350mW |
| Max Reverse Leakage Current | 200nA |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Power Dissipation | 350mW |
| RoHS Compliant | Yes |
| Tolerance | 6% |
| Voltage Tolerance | 5% |
| Zener Current | 5mA |
| Zener Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
MCC BZX84C10-TP Datasheet
Download the complete datasheet for MCC BZX84C10-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

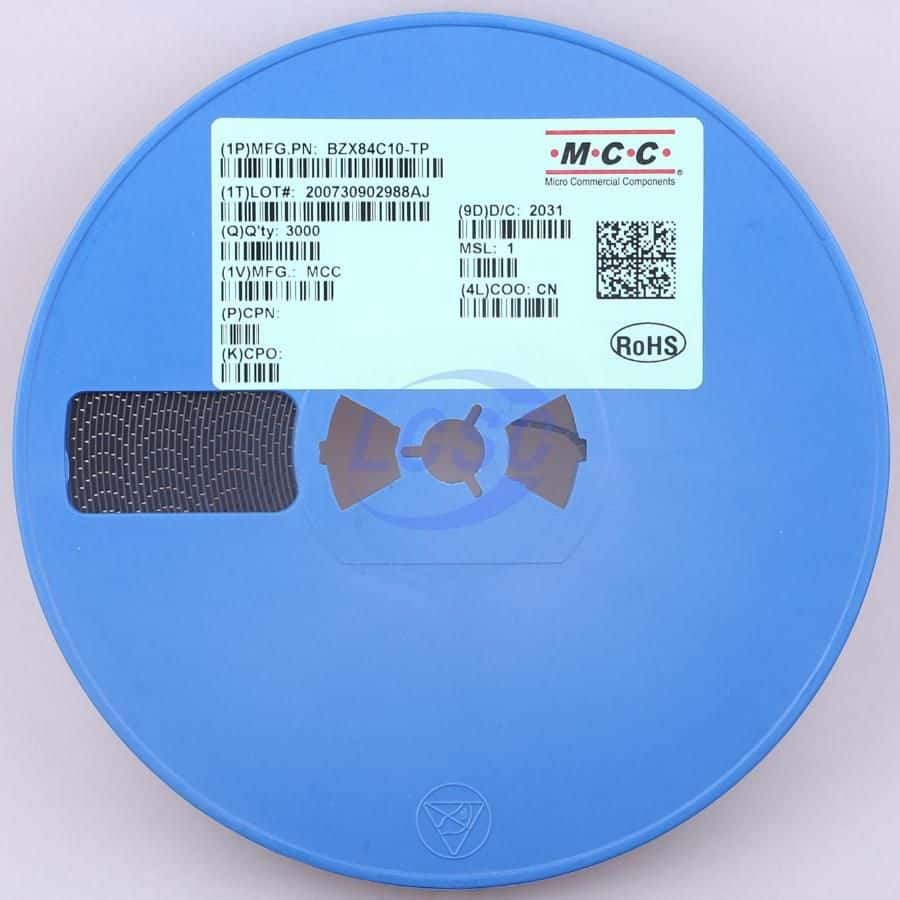

Product Images
