Technical Specifications
MCC ES1J-LTP technical specifications.
General
| Average Rectified Current | 1A |
| Package/Case | SMA |
| Forward Current | 1A |
| Lead Free | Lead Free |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Reverse Current | 80uA |
| Max Reverse Voltage (DC) | 600V |
| Max Surge Current | 30A |
| Mount | Surface Mount |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 30A |
| Radiation Hardening | No |
| Reverse Recovery Time | 35ns |
| Reverse Voltage (DC) | 600V |
| RoHS Compliant | Yes |
| Weight | 0.001199oz |
Compliance
| RoHS | Compliant |
Datasheet
MCC ES1J-LTP Datasheet
Download the complete datasheet for MCC ES1J-LTP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

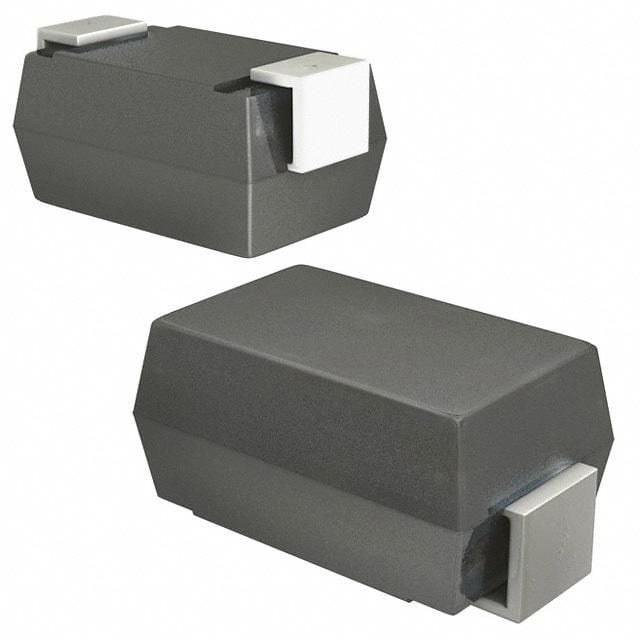

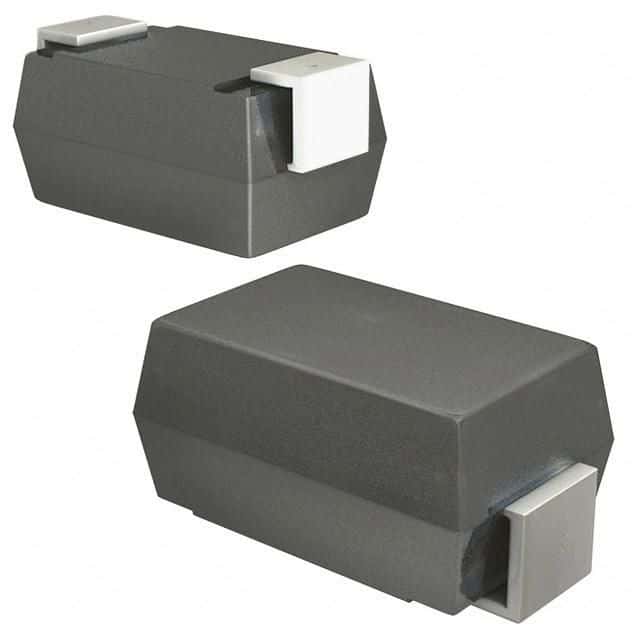

Product Images
