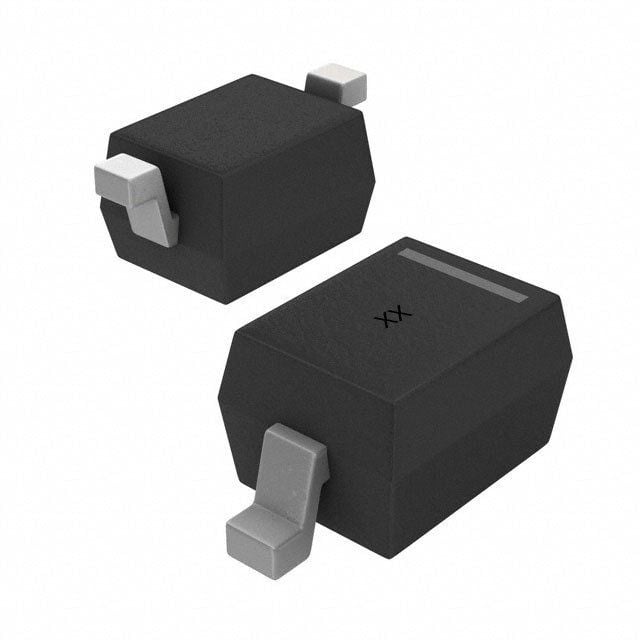

MCC ESD12VD3-TP technical specifications.
| Capacitance | 150pF |
| Clamping Voltage | 33V |
| Depth | 1.35mm |
| Diode Type | ZENER |
| Leakage Current | 1uA |
| Length | 1.8mm |
| Max Breakdown Voltage | 15.75V |
| Min Breakdown Voltage | 13.3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Number of Unidirectional Channels | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 15A |
| Peak Pulse Power | 350W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Standoff Voltage | 12V |
| RoHS Compliant | Yes |
| Working Voltage | 12V |
| RoHS | Compliant |
