Unidirectional TVS Diode for surge suppression, featuring a 3.3V reverse standoff voltage and 3V working voltage. This surface mount component offers a 14.1V clamping voltage and 5V minimum breakdown voltage, with a peak pulse current of 11.2A and peak pulse power of 158W. Operating across a wide temperature range of -55°C to 150°C, it has a low leakage current of 80nA and 105pF capacitance. Packaged in tape and reel, this lead-free, RoHS compliant component is designed for efficient power line protection.
Capacitance105pF
Voltage Rating3V
MountingSurface Mount
Quick Jump:
Technical Specifications
MCC ESD3V3D5-TP technical specifications.
General
Capacitance
105pF
Clamping Voltage
14.1V
Depth
0.85mm
Diode Type
ZENER
Direction
Unidirectional
Lead Free
Lead Free
Leakage Current
80nA
Length
1.3mm
Min Breakdown Voltage
5V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
200mW
Mount
Surface Mount
Number of Unidirectional Channels
1
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
11.2A
Peak Pulse Power
158W
Power Line Protection
No
Radiation Hardening
No
Reverse Standoff Voltage
3.3V
RoHS Compliant
Yes
Termination
SMD/SMT
Working Voltage
3V
Compliance
RoHS
Compliant
Datasheet
MCC ESD3V3D5-TP Datasheet
Download the complete datasheet for MCC ESD3V3D5-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

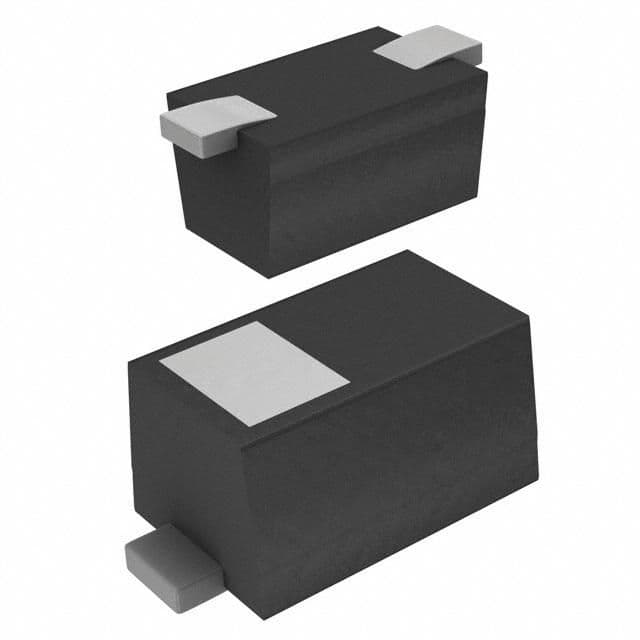

Product Images
