This unidirectional TVS diode offers 5V reverse standoff voltage and 9.8V clamping voltage. Featuring a 5V working voltage, it provides 350W peak pulse power and 15A peak pulse current. With a low leakage current of 1µA and 350pF capacitance, this surface mount component operates from -55°C to 150°C. It boasts 200mW max power dissipation and is RoHS compliant.
Capacitance350pF
Voltage Rating5V
MountingSurface Mount
Quick Jump:
Technical Specifications
MCC ESD5V0D3-TP technical specifications.
General
| Capacitance | 350pF |
| Clamping Voltage | 15.5V |
| Depth | 1.35mm |
| Diode Type | ZENER |
| Leakage Current | 1uA |
| Length | 1.8mm |
| Max Breakdown Voltage | 7.3V |
| Min Breakdown Voltage | 6.2V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 15A |
| Peak Pulse Power | 350W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Standoff Voltage | 5V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Working Voltage | 5V |
Compliance
| RoHS | Compliant |
Datasheet
MCC ESD5V0D3-TP Datasheet
Download the complete datasheet for MCC ESD5V0D3-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

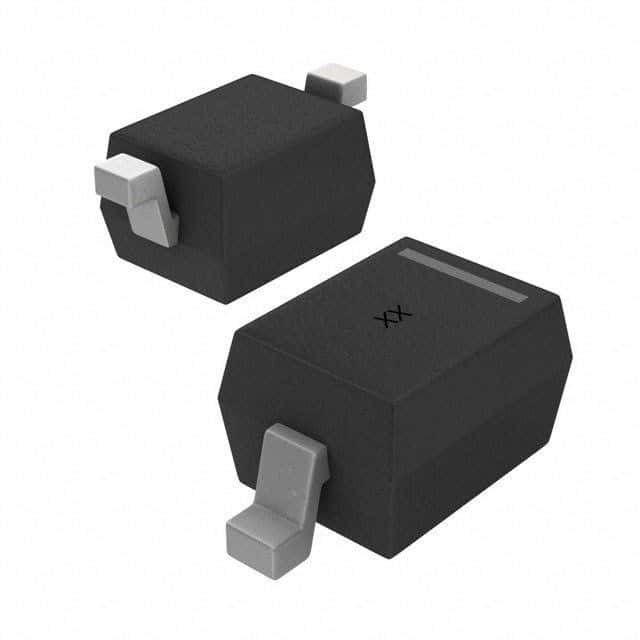

Product Images
